If you’re experiencing issues with your vehicle’s evaporative emission control (EVAP) system, a clogged evap canister might be the culprit. This component helps capture and prevent smog-forming gasoline vapors from entering the atmosphere, so fixing it is crucial to maintain your car’s performance. In this article, we’ll guide you through diagnosing and fixing a clogged evap canister.
Locating the evap canister is the first step, which is usually near the gas tank on your vehicle’s side. Once you’ve found it, you’re ready to embark on the journey to restore your car’s EVAP system to proper working order.
What is Evap Canister
Emissions and Fuel Vapor
Your vehicle emits various gases during its operation, some of which have negative environmental impacts. One such emission is fuel vapor, which is produced in your gas tank as gasoline evaporates. The Evaporative Emission Control (EVAP) system is designed to capture these vapors and prevent them from being released into the atmosphere, reducing overall emissions.

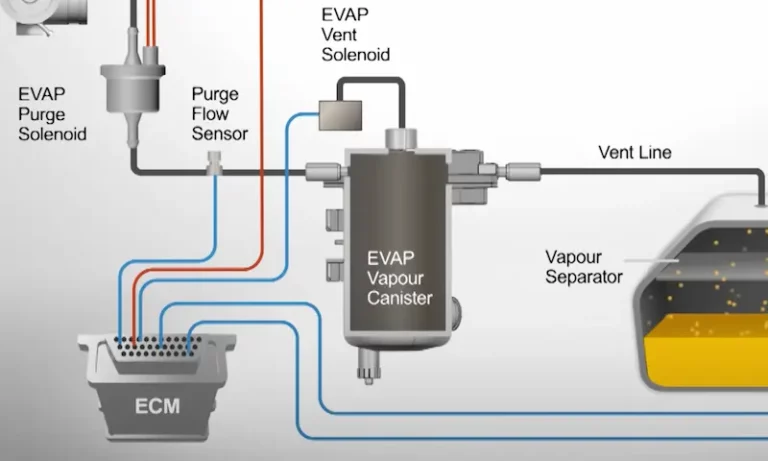

Evap System Components
The EVAP system consists of several components that work together to minimize harmful emissions. Key components include:
- Fuel Tank: Stores gasoline and generates fuel vapor due to evaporation.
- Charcoal Canister: Captures and stores fuel vapor from the gas tank.
- Purge Valve: Allows vapors stored in the charcoal canister to enter the engine for combustion when needed.
- Vent Valve: Controls the flow of fresh air into the canister to clear out leftover fuel vapor.
- Evap System Monitor: Detects any leaks or malfunctions in the system during an emissions test.
Activated Charcoal and Combustion Process
The heart of the EVAP system is the charcoal canister, which makes use of activated charcoal to capture and store fuel vapors. Activated charcoal has a highly porous surface that readily absorbs fuel vapor and stores it until the engine is ready to use it.
When the engine is running, the purge valve opens, allowing the stored fuel vapor to be drawn into the combustion chamber. This process not only helps reduce emissions but also increases fuel efficiency by burning the fuel vapor that would otherwise be wasted.
Signs of a Clogged Evap Canister
A clogged Evap canister can cause several issues in your vehicle. Knowing the signs of a bad canister is crucial for early detection and proper maintenance. In this section, we will discuss four common symptoms of a clogged Evap canister: the check engine light, a strong fuel smell, poor engine performance, and failing an emission test.
Check Engine Light and Error Codes
The most noticeable sign of a clogged Evap canister is the check engine light on your dashboard. Your vehicle’s computer system may detect a problem with the Evap system, causing the engine light to illuminate. This light often comes with error codes that can help you identify the issue. You can use an OBD-II scanner to read these codes and determine if they’re related to the Evap system.
Strong Fuel Smell
Another symptom of a clogged Evap canister is a strong fuel smell coming from your vehicle, particularly from the cabin or near the fuel tank. The canister is responsible for trapping and storing the fuel vapors before being transferred back into the engine. When the canister becomes clogged, these vapors might leak into the atmosphere instead, causing a noticeable fuel smell.
Poor Engine Performance and Gas Mileage
A clogged Evap canister can also affect your vehicle’s engine performance and gas mileage. You may experience a rough idle, difficulty starting, or even a drop in fuel economy. This is because the canister plays a role in controlling the air-fuel mixture within the engine. When the canister is clogged, it can cause an imbalance in this mixture, leading to poor engine performance and low gas mileage.
Failed Emission Test
Lastly, a clogged Evap canister can cause your vehicle to fail an emission test. The main purpose of the Evap system is to reduce pollution by capturing harmful fuel vapors before they escape into the environment. A malfunctioning or clogged canister may allow these pollutants to be released, leading to higher emission levels and potential trouble with emission testing.
How to Fix Clogged Evap Canister
Diagnosis and Smoke Machine Test
To diagnose a clogged evap canister, you might first notice symptoms such as poor engine performance, difficulty refueling at the gas station, or a triggered check engine light. A smoke machine test can help you find a potential vacuum leak in the evaporative emission control (EVAP) system. Connect the smoke machine to the EVAP service port or vent line and monitor for smoke leakage. Using a scan tool or multimeter, you can also check for proper operation of the purge solenoid and vent valve to ensure they are functioning correctly.
Locating and Inspecting the Canister
To locate your vehicle’s evap canister, look near the fuel tank, often on the side of the car. You may need to remove protective shields to access the canister. Once you have found the canister, inspect it for any physical damage or signs of a vacuum leak, like cracked hoses or loose connections. Examine components such as the purge valve, vent valves, and powertrain control module to ensure they are functioning correctly.
Cleaning or Replacing the Canister
If your evap canister contains a clogged charcoal canister, you might need to clean or replace it. To clean the canister, start by removing the filter and using a 3 kg 43 psi air compressor to blow air into the pipe leading to the outer vent control valve. Keep the other upper canister pipes closed while doing this, and then clean the filter.
In case cleaning doesn’t resolve the issue, you may need to replace the entire evap canister. Check the owner’s manual or consult a mechanic for guidance on replacement as well as the correct part number for your specific vehicle model.
Remember, always work safely and use appropriate tools when performing maintenance on your vehicle. With a proper diagnosis and careful repair, you can fix a clogged evap canister and restore your vehicle’s performance.
How to Prevent Future Clogs
To ensure your evap canister stays problem-free, follow these simple guidelines to prevent future clogs.
Regular Maintenance and Inspection
Regular maintenance and inspection play an essential role in preventing clogs in your evap canister. Make sure to follow these steps:
- Fuel system: Regularly check your gas tank and fuel system for buildup. Using fuel system cleaners can also help prevent deposits from building up in the system.
- Spark plugs: Replacing your spark plugs ensures an optimal air-fuel ratio, as worn-out spark plugs can cause poor combustion, leading to clogs.
- Carburetor and fuel injectors: Clean your carburetor and fuel injectors to keep them in good working condition.
Additionally, pay attention to your vehicle’s sensors. Failing sensors can result in problems that impact the evap canister:
- Monitor gaskets and rubber grommets: Periodically inspect the gaskets and rubber grommets around your evap system for wear and damage.
- Emission output: Routinely check your emission output to detect any issues that may affect your evap canister.
Eco-Friendly Driving Habits
Practicing eco-friendly driving habits not only reduces your vehicle’s environmental impact but also helps prevent evap canister clogs. Here are some habits to keep in mind:
- Keep a steady pace: Accelerating and braking smoothly helps maintain a consistent air-fuel ratio, which is crucial for preventing buildup in the evap canister.
- Avoid unnecessary idling: Extended periods of idling can lead to incomplete combustion and increased emissions, which can contribute to evap canister clogs.
- Maintain your vehicle’s recommended tire pressure: Proper tire pressure improves fuel efficiency and reduces the load on your fuel system.
By following these guidelines for regular maintenance and eco-friendly driving habits, you’ll keep your evap canister functioning properly, helping you avoid future clogs and the problems they can cause.
