Dodge Ram Ground Strap Locations: Easy Guide to Find Them

Maintaining your Dodge Ram involves knowing the ins and outs of its electrical system, including the ground strap locations. These straps are crucial for ensuring a proper electrical ground, which prevents electrical issues and ensures your vehicle runs smoothly. Ground straps can be found in areas like near the engine block and on the chassis, connecting to components such as the alternator and transmission. For a more detailed guide tailored for your specific model, it’s best to consult your owner’s manual or visit a professional mechanic.

Locating Ground Straps in Dodge Ram

When working on your Dodge Ram’s electrical system, locating the ground straps is key to ensuring all electrical components function correctly. Let’s pinpoint where to find these crucial connectors in specific parts of your vehicle.

Engine Compartment

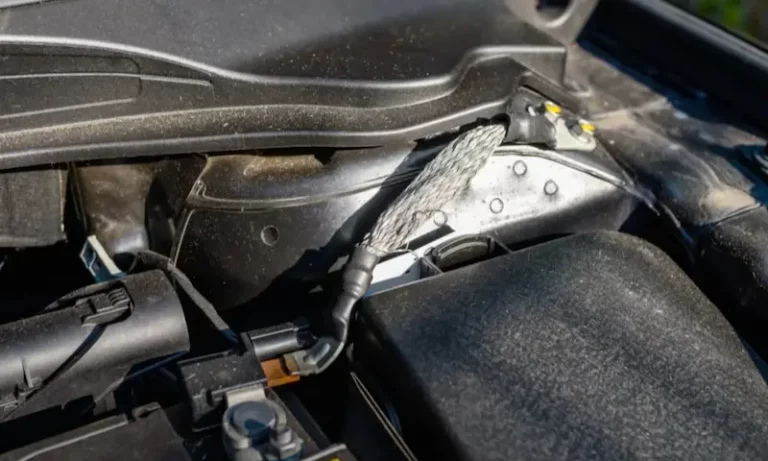

In the heart of your Dodge Ram, the engine compartment, ground straps are essential for maintaining electrical circuit integrity. You’ll find one engine ground strap attached to the back of the head on the engine block, typically on the driver’s side. Look near the battery and alternator for additional straps that complete the circuit with the vehicle’s chassis.

Transmission and Chassis

Moving beneath your Dodge Ram, the transmission area and the chassis include ground straps vital for grounding the vehicle’s drivetrain and electrical systems. The 4.7 ground strap locations may vary, but you can generally locate them connecting the engine block to the chassis and often near the starter to ensure it has a solid ground connection.

Cab and Firewall

Within the cab area and along the firewall, ground straps serve to prevent electrical noise and ensure other components such as the valve cover, radio system, and fuel sending unit are properly grounded. One key strap is attached to the firewall on the passenger side, and another is typically located near the steering column or the valve cover, maintaining the electrical continuity throughout the cab.

Diagnosing Ground Strap Issues

In order to maintain your Dodge Ram’s electrical system, understanding how to troubleshoot ground strap issues is key. This involves two main approaches: a careful visual inspection and electrical troubleshooting. Be thorough during each step to accurately identify any problems.

Visual Inspection

Begin by using a flashlight to examine the ground straps around your engine block carefully. You’re looking for cracks, fraying, or signs of corrosion on the straps themselves. Pay special attention to the connections where the ground straps attach; they should be clean and tight. Visible damage or loose connections can lead to intermittent electrical problems, such as flickering lights or issues with your stereo or gauge cluster.

Electrical Troubleshooting

For electrical troubleshooting, arm yourself with a multimeter. With the multimeter, you can check the continuity of the ground straps. A simple step-by-step guide is to connect one lead of the multimeter to the ground strap, and the other to the engine block or chassis. The multimeter should read close to zero ohms if the ground wire is good. High resistance can indicate a faulty ground, potentially causing problems including dim or flickering headlights.

Replacing Ground Straps

When it comes to maintaining your Dodge Ram’s electrical system, replacing worn or corroded ground straps is crucial. These straps ensure a solid connection to the chassis, preventing electrical issues.

Tools and Materials

To replace the ground straps on your Dodge Ram, you’ll need a few tools and materials. Gather these before you begin:

  • Wrench set: To remove and tighten bolts.
  • New ground straps: Ensure they are the correct type for your Dodge Ram model.
  • Wire brush: To clean any corrosion from the connection points.
  • Dielectric grease: To protect the new straps from future corrosion.

Step-by-Step Replacement

Replacing the ground straps involves a few clear steps. Here’s a simple guide to help you through the process:

  1. Locate the Ground Straps: Use the Dodge Ram Ground Strap Locations guide to find where your ground straps are attached to your vehicle.
  2. Remove Old Straps: Using the wrench, loosen and remove the bolts securing the old ground straps.
  3. Clean Connection Points: Take your wire brush and clean off any corrosion or wear from where the straps were connected to ensure a good contact.
  4. Install New Straps: Place the new ground straps into position and hand-tighten the bolts to secure them.
  5. Apply Dielectric Grease: A small amount of dielectric grease can help protect the connection from moisture and corrosion.
  6. Tighten Bolts: Secure the straps with a wrench, but avoid over-tightening which could damage the straps or bolts.

If you’re uncomfortable with any part of this process, consider visiting a professional mechanic who can ensure that the replacement is done correctly. Proper installation of ground straps can save you from electrical issues and keep your Dodge Ram in good running order.

Technical Details and Specifications

When you’re dealing with the electrical system of your Dodge Ram, understanding the technical details like the correct ground strap gauge and the precise torque specifications for the related components is crucial for the safety and efficiency of your vehicle.

Ground Strap Gauge and Length

Your Dodge Ram requires a ground strap with a specific gauge and length to maintain optimal electrical flow. The gauge of the ground strap typically ranges from 4 AWG (American Wire Gauge) to 0 AWG, depending on the model and electrical requirements. As for the length, it should be long enough to connect the engine block to the frame without stretching or being too loose.

  • Gauge: 4 AWG to 0 AWG
  • Typical Lengths:
    • Engine to chassis: 12″ – 18″
    • Battery to chassis/engine: 18″ – 36″
    • Transmission to chassis: 12″ – 24″

Torque Specifications

Proper torque is key to ensuring a tight and secure connection for bolts and ground straps on your Dodge. Specifically, if you’re working on a Dodge 4.7 engine, you’ll need to adhere to the Dodge 4.7 head bolt torque specs. This typically involves a multi-step process, including an initial torque to a lower value, followed by a final torque to a higher value, and sometimes an additional angle-turn specification.

  • Initial Torque: 20 ft-lbs (27 Nm)
  • Final Torque: 70 ft-lbs (95 Nm)
  • Angle-Turn: Additional 90 degrees

Remember, these values can vary slightly, so always refer to your specific model’s service manual. For the wiring components, properly torqued connections help to prevent electrical resistance and potential failures in your vehicle’s electrical system.

Conclusion

Your Dodge Ram’s ground straps are vital for electrical stability. For maintenance or troubleshooting, checking their condition and location is key. Common spots include under the hood and near the transmission. Regular inspections will keep your Ram running smoothly.
