Getting any error message on your Mercedes instrument cluster is never a good sign. For this reason, we recommend fixing all errors as they may pose a risk to the car’s drivability and safety.
This article discusses the “Front Right Malfunction service required” error message. We will examine the meaning, causes, symptoms and remedy for this error message. Also, we will look at the impact on the drivability and safety of your Mercedes. Let’s dive in!
What is the “Front Right Malfunction Service Required” message?
If you see the error message on your instrument cluster, you should check for malfunction within the Supplemental Restraint System (SRS).
The Supplemental Restraint System (SRS) checks the operation of several individual components in your Mercedes including the airbag, airbag control unit, crash sensors, emergency tensioning devices, belt force limiters, and more.
Where one of these components is faulty, you will notice the SRS warning light on the cluster dashboard screen, along with other signs.
In the case of the “Front Right” our focus is on the front passenger, which will include all SRS components on the front passenger side.
Symptoms of Front Right Malfunction Service required

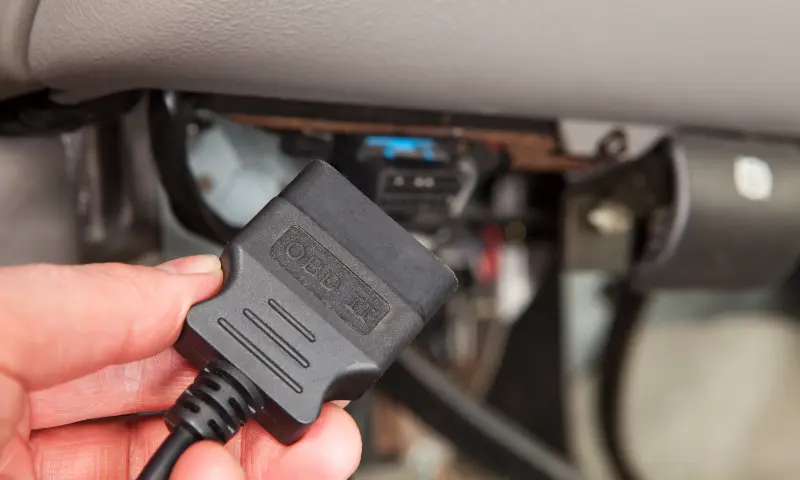

In the case of a Front Right Malfunction, you may notice any of these stored codes. They let you easily diagnose the cause of the Malfunction. You can view this stored code via an OBD II scanner.
B007F13 – SRS (ORC177): This code indicates an open circuit in the SRS system. It shows that the squib (Wiring detonation) for the front passenger emergency tensioning retractor has malfunctioned.
B275113 – SRS (ORC177): This code highlights a malfunction in the squib that connects to the front passenger side bag due to an open circuit.
B001013 – SRS (ORC177): This code shows a malfunction in the squib that connects the front passenger airbag due to an open circuit.
B001113 – SRS (ORC177): This code indicates a malfunction for the front passenger airbag (Stage 2) due to open circuits.
B001313 – SRS (ORC177): Indicates Malfunction of the squib connecting the passenger knee airbag caused by an open circuit.
Causes of the Front Right Malfunction Service required
The major cause of the error message that appears on instrument clusters is short-circuiting and wiring issues. It may be due to occasional high resistance at contact caused by wiring movement.
In worse cases, there might be a problem with one of the components that interact with your SRS. In such a scenario, you must replace the affected component (s).
Here is a list of causes you should know about:
- Faulty Wiring
- Faulty airbag
- Faulty knee airbag
- Faulty emergency tensioning retractor
Remedies for the Front Right Malfunction Service Required
Our remedy for this code focuses on wiring connections and issues. In cases where a physical inspection reveals a faulty component, replace damaged components.
We begin our fix from the airbag control unit. You can find its location on the schematic diagram of the car’s electrical system. (See N2/10, plug 1).
Firstly, disconnect the 104-pin attached to the airbag control unit. Remove the fastener or cable tie from the housing of the disconnected coupling.
Also, gently untie the fabric wrap on all the lines of the plug collar. Now fasten the wiring harness using a new cable tie. Reconnect the 104-pin coupling to the airbag control unit.
Furthermore, inspect the wiring connection of the 20-pin coupling of the airbag control unit (see N2/10, plug 2). It is a sub-harness of the 104-pin coupling of the airbag control unit.
Fasten the harness of the 20-pin using and all other connections using a felt strip.
If you still see the error message or any of the related trouble codes, proceed to clear the code using an OBD II scan tool.
Does “Front Right Malfunction” affect drivability and safety?
While not all error codes impact your car’s drivability and safety, the front right Malfunction Service Required does.
We recommend getting your vehicle examined by an expert without delay.
The error message may show that the airbag and other safety features may not detonate or work properly. It puts your life and others at serious risk.
FAQ
Where is the SRS module on a Mercedes?
In most Mercedes vehicles, the SRS is under the center console between the driver and front passenger seats. But, it may vary depending on your car’s model. Check the vehicle schematic diagram.
What does front left SRS malfunction service required to mean?
It means that your vehicle is experiencing an SRS malfunction on the driver’s side of the car. Unlike the front right malfunction, the seat belt and airbag may malfunction on the driver’s side. There is a need to run a diagnostic scan to determine the stored code.
Can I drive with the SRS light on?
For safety reasons, we do not recommend our readers continue driving if they have the SRS warning light. Doing this puts your life at risk. Take your vehicle to a mechanic or technician for an immediate fix.
How much does it cost to Fix the Front right Srs malfunction?
The error message is expensive to fix due to the several hours committed by the mechanic. Our research places the repair to cost anywhere from $300 to $700 or more., depending on the required fix for the car. Safety above cost.
Final Thoughts!
The safety of life should be the number one priority of all drivers. That is why we recommend our readers take this error message very seriously.
This article also discussed DIY- procedures to remedy the error message, and we hope our readers find it useful. If you are still unable to fix the problem, visit a certified mechanic for a fix.
Thank you for reading!
