Looking for reliable information about the legendary DT466 diesel engine? Whether you’re maintaining one, rebuilding it, or simply curious about this workhorse of medium-duty trucks and buses, you’re in the right place. This guide breaks down everything from basic specifications to modification potential.
DT466 Engine History: The Birth of “The Legend”

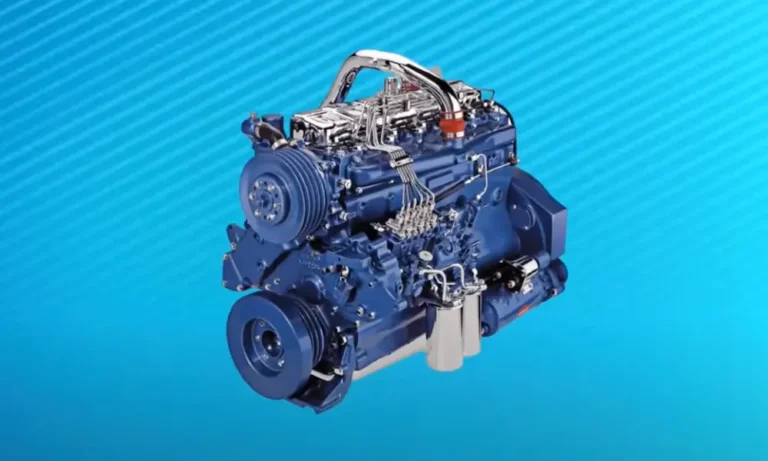

The DT466 didn’t earn its nickname “The Legend” by accident. This inline-six turbodiesel first appeared in 1971, powering agricultural equipment before making its way to highways in 1975.
Originally developed by International Harvester (later Navistar International), this powerplant established itself as one of the most dependable commercial diesel engines ever made. Production continued in the US until 2016, with Mexican factories continuing assembly until 2019.
The engine evolved through several key phases:
- 1984-1995: Mechanical fuel injection era
- 1996-2004: Introduction of HEUI (Hydraulically actuated Electronically controlled Unit Injection)
- 2004-2007: EVRT (Electronic Variable Response Turbocharger) implementation
- 2007-2015: Rebranded as MaxxForce DT with emissions updates
This 44-year production run speaks volumes about the engine’s fundamental design strengths and adaptability.
Core DT466 Engine Specifications
The DT466’s basic architecture remained remarkably consistent throughout its long production:
| Specification | Details |
|---|---|
| Configuration | Inline-6 cylinder, wet-sleeve design |
| Displacement | 466 cubic inches (7.6 liters) |
| Bore x Stroke | 4.59″ x 4.68″ (117mm x 119mm) |
| Block/Head Material | Cast iron |
| Compression Ratio | 17.5:1 |
| Weight | 920 lbs (standard), 1,425 lbs (DT466E) |
| Dimensions | 33″ (L) x 34″ (W) x 38″ (H) |
The wet-sleeve design proved particularly important to the engine’s reputation for durability. Unlike dry-sleeve engines, the cylinders contact coolant directly, providing superior heat transfer and making rebuilds far more straightforward.
DT466 Performance Specs Through the Years
The DT466’s output specifications evolved significantly during its production run, adapting to changing market needs and emissions requirements:
| Model Years | Horsepower Range | Peak Torque | Notable Features |
|---|---|---|---|
| Early Models | 175-225 hp | 460-520 lb-ft | Mechanical injection |
| Mid-Production | 210-275 hp | Up to 800 lb-ft | HEUI system introduction |
| MaxxForce Era | 210-350 hp | Up to 860 lb-ft | Advanced emissions control |
Military applications pushed performance even further, with some specialized variants reaching 375 horsepower. The sweet spot for most commercial applications remained in the 230-275 hp range, where the engine delivered an ideal balance of power, efficiency, and longevity.
Technical Evolution: From Mechanical to Electronic
The DT466’s evolution mirrors the broader transition in diesel engine technology from purely mechanical systems to sophisticated electronic control.
Valvetrain Changes
Early DT466 engines used a simple OHV (Overhead Valve) layout with 2 valves per cylinder. In 1996, alongside the HEUI introduction, the engine received a major upgrade to 4 valves per cylinder, significantly improving breathing capacity and overall efficiency.
Induction System Development
The turbocharging system saw several major evolutions:
- Initial models: Single fixed-geometry turbo with wastegate
- 1999: Addition of intercooling for improved thermal efficiency
- 2004: EVRT variable-geometry turbo for better response across the RPM range
- 2010: Twin sequential turbos on MaxxForce variants
Each of these updates improved throttle response, reduced lag, and helped meet increasingly strict emissions targets.
Fuel System Evolution
Perhaps the most significant transitions occurred in the fuel delivery system:
- 1984-1992: Bosch MW mechanical injection pumps
- 1993-1995: Bosch P mechanical pumps with improved pressure capabilities
- 1996-2004: First-generation HEUI system
- 2004 onward: Refined G2 electro-hydraulic injection
The shift to HEUI technology marked a pivotal moment, allowing much finer control of injection timing, duration, and pressure. This improved both performance and emissions while maintaining the reliability that made the engine famous.
DT466 Maintenance Specifications
Proper maintenance is critical for maximizing the legendary durability of the DT466. Here are the key specifications technicians need:
Fluid Capacities
- Oil capacity: 12-15 quarts (depending on specific model)
- Recommended oil: 15W-40 for most applications (CJ-4 grade for later models)
- Coolant capacity: 8-10 gallons, depending on application
Critical Adjustment Specifications
- Valve lash (cold setting): Intake – 0.025″, Exhaust – 0.025″
- Idle speed: 600-650 RPM (mechanical injection models)
- High idle: 2,300-2,600 RPM (varies by application)
Torque Specifications
For technicians rebuilding these engines, these torque values are essential:
- Main cap torque: 130 ft-lb
- Connecting rod bolts: 115 ft-lb
- Cylinder head bolts: Progressive torque sequence (refer to service manual)
- Injector hold-downs: 55-65 ft-lb
Bearing and Journal Specifications
- Main bearing journal diameter: 3.535 ± 0.0006″ (89.8 ± 0.0152mm)
- Rod journal diameter: 3.1500 ± 0.0006″ (80.0 ± 0.0152mm)
- Minimum cylinder head thickness: 5.040″
Maintaining these specifications is crucial during rebuilds to ensure proper clearances and long-term durability.
Where You’ll Find DT466 Engines
The versatility of the DT466 led to its adoption across numerous applications:
Common Vehicle Applications
- School buses (particularly popular with Blue Bird and IC Bus)
- Medium-duty delivery trucks (International 4300/4400 series)
- Box trucks and moving vans
- Utility trucks and municipal vehicles
- Agricultural equipment (early models)
- Recreational vehicles (RVs) and motorhomes
- Fire apparatus and emergency vehicles
DT466 Engine Family Variants
Several related engines share the DT466’s fundamental architecture:
- DT466E: 1994-2004 electronic-controlled version
- MaxxForce DT: 2007-2015 emissions-compliant successor
- DT408: Smaller 6.7L variant
- DT360: 5.9L version produced from 1987-1994
- MaxxForce 9 and 10: Enlarged 9.3L variants for heavier applications
Each variant shared core design elements while adapting to specific applications and requirements.
DT466 Reliability Factors
The DT466’s legendary reliability stems from several key design elements:
Wet-Sleeve Cylinder Design
The wet-sleeve configuration offers multiple advantages:
- Superior cooling as the cylinder liners contact coolant directly
- Easier rebuilds since sleeves can be replaced without machining
- Reduced thermal stress and distortion
- More consistent cylinder dimensions under operating temperatures
Block Strength
The massive cast-iron block provides exceptional rigidity and strength. Wall thicknesses exceed what’s strictly necessary, creating ample safety margins for high-mileage operation.
Conservative Engineering Approach
International designed the DT466 with considerable safety margins:
- Lower specific output than competitors (hp per liter)
- Moderate peak cylinder pressures
- Conservative operating RPM range
- Simple, proven components with minimal complexity
These factors combine to create an engine that regularly exceeds 500,000 miles before major service and often reaches 1 million miles with proper maintenance.
Common Issues and Problem Areas
Despite its stellar reputation, the DT466 isn’t without weak points:
Early HEUI System Challenges
The first-generation HEUI systems (1996-2003) experienced occasional issues:
- Injector sticking
- High-pressure oil pump failures
- Injection control pressure sensor inaccuracies
These problems were largely addressed in later G2 versions.
Emissions System Complications
MaxxForce-era engines added complex emissions equipment that introduced new failure points:
- EGR cooler leaks and clogging
- EGR valve sticking
- DOC and DPF regeneration issues
Many operators delete these systems in off-highway applications, though this practice is illegal for on-road use.
Cooling System Importance
The DT466 runs hot by design, making cooling system maintenance critical:
- Water pump failures can occur if maintenance is neglected
- Head gasket issues are rare but possible with chronic overheating
- EGR cooler failures often result from cooling system neglect
Performance Modification Potential
While primarily designed for commercial applications, the DT466 has modest performance modification potential:
Realistic Power Goals
The stock engine platform can safely handle:
- Up to 300-325 hp with minor modifications
- 350-400 hp with more substantial upgrades
- Beyond 400 hp requires significant internal strengthening
Common Upgrades
Popular performance enhancements include:
- Injector upgrades (larger nozzles or higher flow rates)
- Turbocharger modifications or replacements
- High-pressure oil pump modifications
- Air intake improvements
- Exhaust system upgrades
- Custom tuning via ECM reprogramming
Most owners find the sweet spot around 300-325 hp, where the engine maintains its reliability while providing improved performance.
DT466 vs. Competitors
How does the DT466 stack up against contemporaries?
Versus Cummins 8.3L
The Cummins 8.3L offers:
- Higher peak power potential
- Slightly better fuel economy
- More aftermarket support
While the DT466 provides:
- Better low-end torque characteristics
- Superior serviceability (especially wet sleeves)
- Lower acquisition costs
- More forgiving of maintenance neglect
Versus CAT 3126/C7
Compared to the Caterpillar offerings:
- DT466 has simpler maintenance requirements
- CAT engines typically offer better fuel economy
- DT466 has lower parts costs
- CAT engines have broader dealer support network
- DT466 is more tolerant of poor fuel quality
The DT466 Legacy
The International DT466 represents a high-water mark in commercial diesel engine design. Its combination of simplicity, durability, serviceability, and adaptability has cemented its place in diesel engine history. While emissions regulations eventually led to its discontinuation, the engineering principles that made it successful continue to influence engine design today.
With proper maintenance, these engines regularly achieve 1 million+ miles, making them one of the most cost-effective power solutions in the commercial trucking industry. The “Legend” nickname is well-earned, as few engines can match the DT466’s reputation for bulletproof reliability in demanding applications.
For owners and operators of DT466-equipped vehicles, investing in proper maintenance and understanding the engine’s design principles pays dividends in exceptional service life and minimal downtime – exactly what made these engines legendary in the first place.
