Ever looked at your Cummins ISX engine and wondered where that pesky coolant temperature sensor is hiding? You’re not the first trucker or mechanic to hunt for this critical component. Whether you’re troubleshooting an overheating issue or just doing routine maintenance, knowing exactly where these sensors are located can save you hours of frustration.
Where Is the Cummins ISX Coolant Temp Sensor Located?
The Cummins ISX engine has two main coolant temperature sensors in strategic locations that monitor different parts of the cooling system.
Thermostat Housing Sensor
The primary coolant temperature sensor on a Cummins ISX is located on top of the thermostat housing on the passenger side of the engine. This sensor is crucial because it:
- Monitors coolant temperature as it exits the engine block
- Sends real-time data directly to the Engine Control Module (ECM)
- Helps regulate fuel delivery based on temperature readings
To access this sensor, you’ll need to remove the intake pipe that runs between the air filter housing and the turbocharger intake. This creates enough working space to reach the thermostat housing where the sensor is mounted.
Coolant Reservoir Sensor
A second temperature sensor can be found on the coolant reservoir. This sensor works together with the coolant level sensor (located at the bottom of the reservoir) to provide comprehensive monitoring of your cooling system.
The level sensor appears as a small probe extending into the reservoir and can be unplugged from underneath. While technically not a temperature sensor, it’s part of the integrated cooling system monitoring setup that helps maintain proper engine temperatures.
What the Coolant Temperature Sensors Do
These sensors aren’t just random parts – they serve critical functions that keep your Cummins ISX running smoothly and safely.
How the Sensors Work

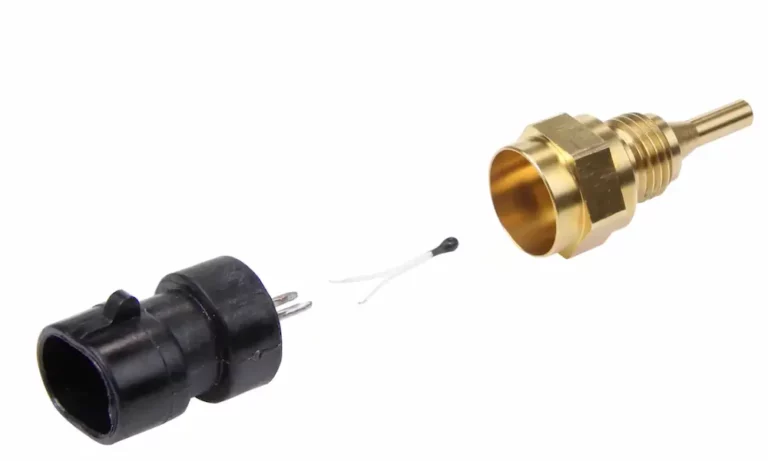

The Engine Coolant Temperature (ECT) sensor on the Cummins ISX is a two-wire thermistor device that changes electrical resistance as temperatures change. This allows the ECM to accurately monitor your engine’s temperature in real-time.
When working properly, these sensors help the engine management system:
- Fine-tune fuel delivery for optimal combustion
- Control emissions systems effectively
- Protect your engine from heat damage
- Display accurate temperature readings on your gauge cluster
Temperature Thresholds and Protection Features
Your Cummins ISX engine is programmed to protect itself when temperatures climb too high:
- When temperatures exceed 217°F (103°C), the ECM automatically implements a torque de-rate to reduce engine load
- If temperatures reach a dangerous 233.6°F (112°C), the ECM initiates an engine shutdown to prevent catastrophic damage
This protective cascade shows why having properly functioning temperature sensors is absolutely essential for your engine’s health.
How to Access and Service Your Coolant Temperature Sensors
Ready to check or replace your sensors? Here’s what you’ll need to do.
Accessing the Thermostat Housing Sensor
- Remove the intake pipe that connects the air filter to the turbocharger
- Move aside any alternator cables secured in front of the thermostat housing
- Disconnect the upper radiator hose from the thermostat housing
- On some configurations, you might need to unbolt the AC compressor to access all thermostat housing bolts
Once you have clear access, the sensor itself is relatively straightforward to replace. It typically unscrews from its mounting location once the electrical connector is detached.
Tools You’ll Need
For this job, gather these basic tools:
- Socket set with extensions
- Screwdrivers (flathead and Phillips)
- Pliers
- Drain pan for coolant
- Rags for cleanup
- Replacement sensor (verify part number for your specific engine)
Testing Your Coolant Temperature Sensor
Before replacing a sensor, it’s smart to verify it’s actually the problem.
Using a Multimeter
You can test your temperature sensor using a basic multimeter:
- Set your multimeter to measure resistance (ohms)
- Disconnect the sensor’s electrical connector
- Connect your multimeter to the sensor terminals
- Compare the resistance reading to specifications for your particular sensor
A properly functioning sensor should show changing resistance as temperature changes. If readings are erratic or very different from specifications, the sensor likely needs replacement.
Common Symptoms of a Bad Sensor
Watch for these tell-tale signs that your coolant temperature sensor is failing:
- Erratic temperature gauge readings
- Engine overheating without warning
- Poor fuel economy
- Rough idle or stalling
- Check engine light illumination
- Engine running rich (black smoke)
- Difficulty starting in cold weather
Sensor Replacement Procedure
Once you’ve confirmed your sensor needs replacement, follow these steps:
- Ensure the engine is cool to prevent burns
- Drain coolant to below the sensor level to prevent spillage
- Disconnect the electrical connector from the sensor
- Carefully unscrew the old sensor (may require penetrating oil if stuck)
- Apply thread sealant to the new sensor if recommended
- Install the new sensor and tighten to specifications
- Reconnect the electrical connector
- Refill coolant and check for leaks
- Clear any fault codes using a diagnostic tool
Temperature Sensor Specifications and Part Numbers
Getting the right replacement part is critical for proper function.
Technical Specifications
The Cummins ISX coolant temperature sensor typically:
- Uses a two-wire design
- Functions as a thermistor (resistance changes with temperature)
- Operates on 5V reference voltage
- Has a specific resistance range that varies with temperature
OEM Part Numbers
Common Cummins temperature sensor part numbers include:
- 4921473: Common replacement for ISX coolant temp sensors
- 5461631: Used in some ISX applications
- 4307110: Alternative temperature sensor used in certain models
Always verify the correct part number for your specific engine model and year.
Wiring and Electrical Considerations
Temperature sensors depend on proper electrical connections to function correctly.
Wiring Diagram Insights
The Cummins ISX temperature sensor typically connects to the ECM through dedicated circuits:
- One wire carries the temperature signal to the ECM
- The second wire provides the ground reference
- The ECM interprets the voltage drop across the sensor to determine temperature
Troubleshooting Electrical Issues
When diagnosing sensor problems, don’t forget to check the wiring:
- Inspect connectors for corrosion or damage
- Check for continuity in wiring harnesses
- Verify proper voltage at the sensor connector
- Look for shorts to ground or power
- Ensure the ECM is receiving the signal correctly
Preventative Maintenance Tips
Keep your cooling system in top shape with these practices:
- Inspect coolant level and quality regularly
- Replace coolant per Cummins maintenance schedule
- Visually check sensors and connectors for corrosion
- Monitor temperature gauge for unusual readings
- Address small issues before they become major problems
- Use OEM or equivalent quality parts for repairs
Cooling System Components That Affect Sensor Readings
Your temperature sensors don’t work in isolation. These components all affect cooling system performance:
- Radiator condition and cleanliness
- Water pump functionality
- Thermostat operation
- Fan clutch engagement
- Belt tension and condition
- Coolant quality and concentration
- Radiator cap pressure rating
A problem with any of these components can cause temperature issues that might be mistakenly attributed to sensor failure.
Common Questions About Cummins ISX Coolant Temp Sensors
How many coolant temperature sensors are on a Cummins ISX?
There are typically two main coolant temperature sensors on a Cummins ISX engine: one on the thermostat housing and another on the coolant reservoir. Some configurations may have additional sensors for specific monitoring functions.
How do I know if my coolant temperature sensor is bad?
Signs include erratic temperature gauge readings, check engine lights, poor fuel economy, rough running, and engine overheating warnings. Testing the sensor’s resistance with a multimeter can confirm if it’s functioning properly.
Can I drive with a bad coolant temperature sensor?
While technically possible in the short term, it’s extremely risky. A faulty sensor can lead to inaccurate temperature readings, causing the engine to run too hot or too cold, potentially resulting in serious engine damage or unexpected shutdown.
How often should coolant temperature sensors be replaced?
There’s no specific replacement interval for these sensors. They typically last many years or hundreds of thousands of miles unless they fail. Most mechanics recommend replacing them only when they show signs of failure or as part of major cooling system overhauls.
Advanced Diagnostics
For those with access to diagnostic tools, these steps can help pinpoint sensor issues:
- Connect a Cummins INSITE or similar diagnostic tool
- Check for active and inactive fault codes related to coolant temperature
- Monitor real-time data parameters including:
- Engine coolant temperature
- Thermostat opening percentage
- Fan engagement status
- Engine load and RPM
- Perform comparative readings between multiple temperature sensors
- Test the sensor circuit integrity using the diagnostic tool’s guided tests
With modern diagnostic equipment, you can often isolate sensor problems more quickly and accurately than through manual testing alone.
By understanding exactly where your Cummins ISX coolant temperature sensors are located and how they function, you’re better equipped to maintain and troubleshoot your engine’s cooling system—keeping you on the road longer with fewer unexpected breakdowns.
