Cummins Outlet NOx Sensor Location: Your Complete Guide

Struggling to find the outlet NOx sensor on your Cummins engine? You’re in the right place. Whether you’re troubleshooting an emissions light, planning a replacement, or just wanting to understand your diesel engine better, knowing exactly where this critical component sits can save you time, money, and frustration.

What Is a Cummins Outlet NOx Sensor?

The outlet NOx sensor is a sophisticated component that measures nitrogen oxide levels in your exhaust after they’ve passed through the aftertreatment system. Unlike its partner (the inlet sensor), the outlet NOx sensor confirms whether your emissions control system is actually doing its job.

Think of it as the verification checkpoint – it makes sure your engine isn’t just processing exhaust gases but is actually cleaning them effectively to meet emissions standards.

Why It Matters

Your outlet NOx sensor doesn’t just monitor emissions – it directly affects how your engine performs:

• When functioning properly, it helps maintain optimal engine performance
• When failing, it can trigger fault codes and put your engine in limp mode
• It’s required for emissions compliance in most regions

Outlet NOx Sensor Location by Engine Model

ISX Series Location

On Cummins ISX engines, finding the outlet NOx sensor requires understanding the aftertreatment system layout. Follow these simple steps:

1. Identify the two main components of your aftertreatment system: the Diesel Particulate Filter (DPF) and the Selective Catalytic Reduction (SCR) catalyst
2. Follow the exhaust flow path
3. The outlet NOx sensor is located after the SCR catalyst, which is typically the component with the exhaust flowing upward

The sensor itself has two parts: the probe (screwed directly into the exhaust pipe) and the electronic control module nearby, often mounted in a protective housing.

6.7 Liter Cummins Engines

If you’re working with a 6.7 Cummins (common in RAM trucks), the outlet NOx sensor (sometimes called “NOx sensor #2”) sits at the tailpipe after the entire aftertreatment system.

Don’t confuse it with the NH3 (ammonia) sensor, which is a different component that measures DEF (Diesel Exhaust Fluid) levels in your system. The outlet NOx sensor is specifically positioned to measure the final exhaust composition before it leaves your vehicle.

X15 Cummins Models

For newer X15 Cummins engines in heavy-duty applications, look for the outlet NOx sensor on the SCR box/DPF filter assembly. It’s typically positioned on the passenger side below the cab, specifically at the tailpipe section of the aftertreatment system.

If you’re having trouble identifying it, look for a sensor near the very end of your exhaust treatment system, just before the gases exit to the atmosphere.

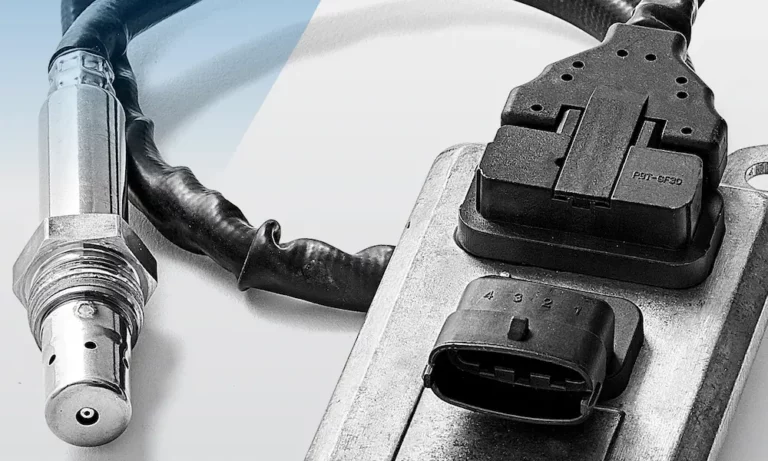

Physical Characteristics: What Does It Look Like?

The outlet NOx sensor has distinctive features that make it identifiable:

• Resembles an oxygen sensor with a threaded base
• Has an electronic module attached to the sensor body
• Connected by a wiring harness with a secure connector (often with a yellow locking tab)
• Usually requires a 22mm socket for removal
• May have a protective shield around it in some models

Common Signs of Outlet NOx Sensor Failure

Your outlet NOx sensor might be failing if you notice:

1. Check engine light or specific emissions system warnings
2. Engine entering limited power mode
3. Failed emissions tests
4. Increased DEF consumption
5. Rough running or hesitation
6. Multiple fault codes related to the aftertreatment system

DIY Replacement Guide

Tools You’ll Need

• 22mm socket or special oxygen sensor socket
• 8mm socket (for mounting bolts)
• Anti-seize compound
• Potentially a torch for stubborn sensors
• Clean rags
• Safety glasses and gloves

Step-by-Step Replacement Process

1. Locate the sensor by following the model-specific guidance above
2. Disconnect the electrical connector by releasing the locking mechanism (often a yellow tab that needs to be pulled up or pried carefully)
3. Remove mounting bolts holding the sensor module in place (typically 8mm bolts)
4. Unscrew the sensor probe using a 22mm socket
5. Apply anti-seize to the threads of the new sensor (unless pre-applied)
6. Install the new sensor in reverse order, being careful not to overtighten
7. Create a proper wire loop (180-degree) after installation to prevent wire damage

Pro Tips for Successful Installation

• Always work with a cool engine to avoid burns
• The sensor should ideally be mounted in an upright position
• Keep the sensor away from areas where water condensation might collect
• Don’t overtighten – the specified torque is usually around 30-40 Nm
• Make sure the electrical connector clicks firmly into place
• Create a proper wire loop with the sensor wire to prevent damage

Installation Considerations You Can’t Ignore

Proper positioning of the outlet NOx sensor is critical for its accurate operation and longevity. Pay attention to these key factors:

Protection from Water Damage

Water is the enemy of NOx sensors. When installing yours:

• Position it to prevent condensate water from contacting the sensor head
• Check that the SCR system’s drain hole is clear of debris
• For X15 models, consider applying high-temperature sealant where liquid could potentially wick into the sensor cup, as recommended by Cummins

Proper Positioning

Position matters tremendously for accuracy and sensor life:

• Install the sensor at a distance from exhaust bends to avoid turbulence
• Mount it at an upright angle when possible
• Ensure the sensor wire has the proper 180-degree loop for protection
• Never wind or sharply bend the wire as this can damage internal connections

Genuine vs. Aftermarket Sensors

Making the Right Choice

If your truck is under warranty or used commercially, genuine Cummins ReCon (remanufactured) sensors are often the best choice. They come with new sensor probe tips and pre-applied anti-seize on the threads.

For older engines or budget-conscious owners, quality aftermarket sensors can work well but research brands carefully.

Preventive Maintenance for NOx Sensors

Extend the life of your outlet NOx sensor with these maintenance practices:

• Regularly check for loose connections or damaged wiring
• Use quality diesel fuel to minimize contaminants
• Follow recommended regen cycles and don’t interrupt them
• Maintain proper DEF quality and levels
• Address any exhaust leaks promptly
• Keep the aftertreatment drain holes clear

Technical Specifications

The Cummins outlet NOx sensor operates within specific parameters:

• Operating temperature: The ceramic chip inside requires heating for approximately 1.5 minutes to reach operating temperature
• Voltage requirements: Typically 12V or 24V depending on the system
• Signal output: Digital communication with the ECM through CAN bus protocol
• Expected lifespan: 100,000-200,000 miles under normal conditions
• Response time: Milliseconds once at operating temperature

Real-World Experience: Common Installation Challenges

Technicians regularly report these challenges when dealing with outlet NOx sensors:

1. Seized sensors: After extended periods, these sensors can become difficult to remove. Applying penetrating oil or carefully heating the surrounding area can help.
2. Wiring damage: The delicate wiring to the sensor can be damaged during removal or installation. Always pull the connector, never the wire.
3. Connector issues: The connectors may become brittle over time. Handle carefully and consider replacing damaged connectors.
4. Cross-threading: This can damage both the sensor and the exhaust system. Always start threading by hand.
5. Water damage: Even properly installed sensors can fail if water enters the system. Check for damage to exhaust components that might allow water ingress.

Troubleshooting After Installation

If you’ve installed a new outlet NOx sensor but still have issues, check these common causes:

• Exhaust leaks: Any leak between the engine and the sensor can cause inaccurate readings
• Incomplete reset: Some vehicles require a specific reset procedure after sensor replacement
• Damaged wiring: Inspect the entire harness for damage
• Related components: Problems with the SCR, DEF system, or other sensors can trigger NOx sensor codes
• ECM software: Outdated software might not recognize the new sensor properly

Environmental Impact of Proper NOx Sensor Function

A properly functioning outlet NOx sensor doesn’t just keep your truck running – it makes a real environmental difference:

• NOx emissions contribute to smog and respiratory issues
• A single malfunctioning sensor can increase emissions by 5-20x
• Proper function ensures SCR systems reduce NOx by up to 90%

Keeping your sensor in good working condition is not just about compliance – it’s about reducing your environmental footprint.

Conclusion

The outlet NOx sensor may be small, but it plays an outsized role in your Cummins engine’s performance and emissions compliance. By understanding its location, function, and proper installation, you can maintain optimal engine performance while avoiding costly downtime.

Whether you’re a DIY truck owner or a professional technician, taking the time to properly identify and maintain this critical component will pay dividends in engine longevity and performance.
