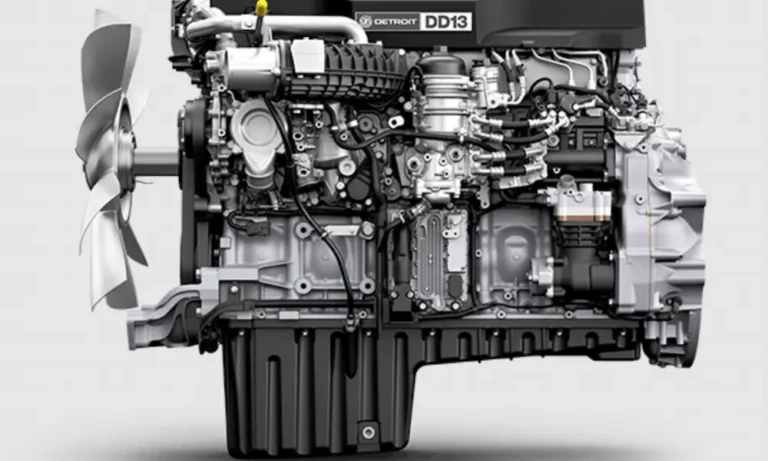

DD13 Oil Capacity: The Complete Guide for Trucks, Coaches & Vocational Rigs

Getting the DD13 oil capacity wrong can cost you a engine. Too little oil and your bearings run dry. Too much and you’re churning foam through your galleries. This guide breaks down every spec, every variant, and the 32-quart mystery that trips up even experienced techs. Read all the way through — the troubleshooting section alone is worth it.

What Is the DD13 Oil Capacity?

The short answer: 40 quarts for a standard service fill on most truck applications.

But that single number hides a web of variables. The DD13 oil capacity shifts depending on your emission standard, your application (truck vs. coach vs. vocational), and whether you’re doing a routine service or rebuilding a dry engine from scratch.

Here’s the full breakdown for truck applications across all emission cycles:

The high and low pan limits give you a 5-quart operating window — and that matches the dipstick range of 5.2 quarts between MIN and MAX. If your dipstick reads full after 32 quarts, don’t panic. Keep reading.

DD13 Oil Capacity: Dry Fill vs. Service Fill

Here’s where techs get burned. Dry fill and service fill are not the same number.

The total dry engine oil volume is what you need when the engine is brand new off the assembly line or freshly overhauled — every gallery, cooler, and turbo oil line is empty. That number is 46.5 quarts (44.0 liters) for truck applications in the EPA07 through GHG17 era.

The service fill — what you add during a routine oil and filter change — is 40.1 quarts (38.0 liters).

Why the gap? Because even after a proper hot drain, roughly 6.3 quarts (6.0 liters) stays trapped inside the engine. It’s sitting in the upper cylinder head galleries, the oil cooler circuit, and the turbocharger oil lines. That oil doesn’t drain out. Ever.

Pour the full dry volume into an engine that already has 6.3 quarts hiding inside it, and you’ve got a serious overfill on your hands.

DD13 Oil Capacity by Application: Trucks Aren’t the Only Option

The DD13 doesn’t just live in Freightliner Cascadias. It powers motorcoaches and a wide range of vocational equipment — and those applications carry different oil capacities.

Coach Applications

Motorcoach builds often use rear-engine configurations. That creates extra cooling demands and drainage challenges, so the oil volumes go up. Here’s how coach specs have changed across emission cycles:

Notice the GHG14 coach dip? Detroit Diesel trimmed the capacity during that cycle, then bumped it back up for GHG17. That’s what happens when engineers keep balancing oil aeration risk against weight targets.

Vocational Applications

The DD13 in vocational builds — think Western Star 114SD or Freightliner M2 112 Plus in refuse and utility service — runs the same 40-quart (38-liter) service fill as the on-highway truck. What changes is the duty environment: steep angles, PTO loads, and extended idle time.

The front-sump design handles those angle demands well. The oil pickup stays submerged even when the chassis tilts during off-road work or when powering high-pressure hydraulic equipment.

How Does the DD13 Stack Up Against the DD15 and DD16?

If you run a mixed fleet, you need to know these numbers cold. Mixing up DD13 and DD15 specs during a service event is an easy mistake with expensive consequences.

The DD13 runs about 5.5 quarts less oil than its bigger siblings. That’s proportional to the 12.8-liter displacement, and it reflects the DD13’s focus on regional and weight-sensitive applications where every pound matters.

The 32-Quart Mystery: Why Your Dipstick Says Full

This is the most-discussed issue in DD13 maintenance forums — and it trips up experienced techs regularly.

You drain the oil. You add 32 quarts. The dipstick reads full. So what’s going on?

Cold Drains Leave More Oil Behind

The 6.3-quart residual figure assumes an ideal hot drain. A cold drain can easily leave 8 to 10 quarts of thick, sluggish oil clinging to the upper galleries and cooler. If you then pour in 40 quarts, you’ve just overfilled by nearly 2.5 gallons. That’s not a minor issue — overfilled oil gets churned by the crankshaft counterweights, creating foam that can’t hold a hydrodynamic film over your bearings.

Detroit Diesel is direct about this in their technical literature: overfilling the oil pan causes engine damage. Full stop.

The Right Fill Protocol

Follow this sequence and you’ll hit the correct level every time:

1. Drain hot. Run the engine to operating temperature before pulling the drain plug. Hot oil flows out of the galleries — cold oil doesn’t.
2. Pull the filter first. Remove the oil filter before draining the sump. This lets oil trapped in the filter housing drain back into the pan instead of staying in the system.
3. Start with 32 to 34 quarts. Don’t pour in the full 40 quarts up front.
4. Run it. Start the engine for a few minutes to fill the new filter and bring the system to pressure.
5. Wait 15 minutes. Let the oil drain back into the sump before checking the dipstick.
6. Top off. Add oil gradually until you reach the correct level on the dipstick.

The dipstick range covers 5.2 quarts between MIN and MAX. That’s your buffer — use it.

Oil Pan Materials: What’s Under Your DD13

The oil pan on a DD13 isn’t just a bucket. It affects weight, noise, and how you torque things down. Get the torque wrong on a composite pan and you’ll be dealing with a cracked housing.

Thermoplastic Composite Pans

Most on-highway DD13s — especially in Freightliner Cascadias — run the thermoplastic composite pan (part number A4710108113). These pans are lighter than metal alternatives (typically 25 to 28 lbs) and they absorb noise instead of amplifying it. That makes a real difference on urban routes with noise ordinances.

The tradeoff: composite pans are torque-sensitive. According to NHTSA technical service documentation, the specs are tight:

Go past those numbers and you crack the pan. Go under them and you get leaks.

Aluminum and Steel Pans

Aluminum pans conduct heat well, which helps with oil cooling on stop-and-go routes. They’re roughly one-third lighter than steel. But they’re brittle — a road strike that dents a steel pan may crack an aluminum one.

Steel pans are the most durable option. If something hits them, they dent. They don’t crack. The downside is weight and long-term corrosion risk.

What Oil Does the DD13 Take?

The DD13 oil capacity only means something if you’re running the right fluid. Detroit Diesel specifies oils under their Detroit Fluids Specifications (DFS) system.

DFS 93K222 (API CK-4): The workhorse spec. Available in 15W-40 and 10W-30. Fully backward compatible with all DD13 generations. This is your standard heavy-duty choice.

DFS 93K223 (API FA-4): The fuel-economy spec. Lower viscosity, less internal friction, better MPG. It’s the factory fill for GHG17 and Gen 5 DD13 engines. Don’t use FA-4 in older engines without checking compatibility first.

There’s one important catch for older engines: if you want to run 10W-30 oil (CK-4 or FA-4) in an EPA07 DD13, the engine needs MCM software version 13.4.2.0 or higher. Without that update, the lower idle oil pressure from the thinner oil can trigger a false system fault and shut the engine down.

Every oil seeking DFS 93K222 or 93K223 approval also has to pass the DD13 Scuffing Test — a real-world engine test that validates the oil’s ability to protect cylinder liners and piston rings under extreme conditions. Products from brands like AMSOIL specifically reference passing this test in their product documentation.

DD13 Oil Change Intervals by Duty Cycle

The 40-quart capacity supports some seriously long drain intervals — but only if you match the interval to your actual duty cycle. Detroit Diesel breaks it down into four categories:

Severe duty covers anything under 5.0 mpg — short runs, heavy PTO use, or dusty off-road conditions. Efficient long-haul rigs averaging over 7.0 mpg can stretch to 65,000 miles between changes. The Gen 5 DD13 spec sheet confirms these intervals, which are enabled by the large fluid volume acting as a buffer against soot and acid buildup.

Always replace the oil filter at every oil change. The filter holds oil that accounts for part of your total system volume — letting that old, saturated filter stay in place defeats the purpose of a fresh fill.

Gen 5 DD13: What’s New in the Lubrication System

The Gen 5 (GHG21) DD13 delivers up to 4% better fuel economy than previous generations. Several lubrication-related design changes make that possible.

Swirl piston design. The new piston crown geometry improves air-fuel mixing but also changes how heat moves through the piston. The lubrication system has to carry that heat away faster to prevent oil carbonization on the rings.

Asymmetric cell aftertreatment. Fewer active regeneration events mean less late-cycle fuel injection — which means less fuel diluting the engine oil. Your 40-quart fill stays cleaner longer.

New turbocharger. The Gen 5 turbo spins faster for quicker torque response. That puts more shear stress on the lubricant, which is exactly why DFS 93K223 (FA-4) was developed. The lower viscosity reduces friction while the formulation still protects high-speed rotating components.

The compression ratio also stepped up to 20.3:1, which means more thermal load on every component the oil touches. The Gen 5 lubrication system handles it — but only when you’re running the right oil at the right volume.

Quick Reference: DD13 Oil Capacity Summary

Here’s everything in one place for the shop wall or your fleet maintenance file:

The DD13 oil capacity isn’t a single number — it’s a system. Know your application, drain it hot, fill it in stages, use the right DFS-approved oil, and match your interval to your actual duty cycle. Do those five things consistently and your DD13 will log the miles it’s built to run.
