How to Reset John Deere Fault Codes Without a Scanner: A Complete DIY Guide

Ever been in the middle of a critical job when your John Deere machine flashes a fault code? If you don’t have a diagnostic scanner on hand, you’re not out of luck. There are several proven methods to reset those pesky fault codes yourself, potentially saving you time and money when you’re far from the dealer.

Whether you’re working with a tractor, skid steer, or commercial mower, I’ll walk you through the equipment-specific reset procedures that actually work in the field. Let’s dive into the methods that can get your machine back up and running quickly.

Equipment-Specific Reset Methods

Skid Steer and Construction Equipment Reset

John Deere skid steers feature one of the most straightforward reset procedures using the built-in menu system:

1. Press and hold the “MENU” button for 5 seconds until “CODES” appears
2. Press “SELECT” to view the diagnostic codes
3. Scroll through codes by pressing “SELECT” until “END” appears
4. Press “SELECT” again to display “WAIT”
5. Hold “SELECT” for 5 seconds to clear all codes
6. When successful, “END” will appear on the display

For models like the 333G, you can also access the service menu by holding the menu button until “SERVICE MENU” appears, then navigate to diagnostics > codes > clear.

Tractor Reset Methods by Series

5 Series Tractors (E and M Models)

E Series (like 5067E):

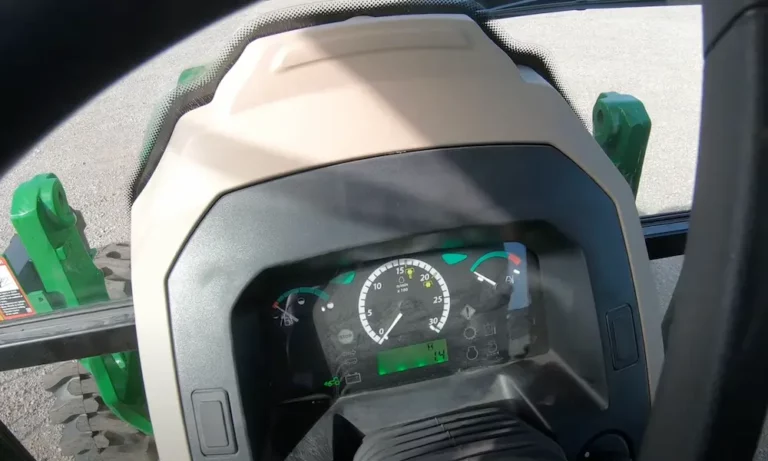

1. Find the small round information button on the left side of the steering column
2. Hold this button for about 5 seconds to display diagnostic codes
3. Cycle through codes using the same button to clear them

M Series with advanced displays:

1. Press the menu button
2. Navigate to diagnostics using the roller dial
3. Select trouble codes
4. Use the “clear all codes” function

8000 Series Tractors (8320, 8420, 8520)

These tractors use a diagnostic fuse method:

1. Move a 10-amp fuse from the spare location to the diagnostic fuse slot (labeled “DIAG”)
2. Turn the key to ON position to display diagnostic mode
3. Use turn signal switch to move between control units
4. Use flash-to-pass function to select and clear codes
5. Repeat for each controller showing fault codes

6000 Series Tractors

These models use a toggle switch diagnostic mode:

1. Turn key to ON position for at least 4 seconds
2. Pull back diagnostic toggle switch and hold for 4 seconds
3. Use turn signal switch to navigate through options
4. Use hazard light switch as the enter/select button
5. Navigate to specific control unit containing codes
6. Scroll to “clear code” option and select with hazard light switch

Generation 4 Display Equipment

Modern John Deere equipment with Gen 4 displays offers the most user-friendly reset:

1. Press the “Menu” button in the bottom right corner
2. Select “System” (usually third option down on left)
3. Navigate to “Diagnostic Center”
4. Select “Trouble Codes” to view all codes
5. Press “Clear All Codes” button at the bottom of the screen

Commercial Mower Reset Procedures

Z-Track commercial mowers (Z900 series) use a diagnostic light system:

1. Cycle the key switch from OFF to RUN exactly three times
2. Leave it in RUN position on the third cycle
3. Diagnostic light will flash codes in specific patterns
4. For mowers with displays, key cycling (off and on again) may clear temporary codes

Combine Reset Procedures

John Deere combines typically use cornerpost display systems:

1. Press the diagnostic switch with key in RUN position (“DIA” appears)
2. Use up/down arrows to navigate through addresses
3. Find the specific controller with codes
4. Follow the display system’s clearing procedure

For combines with GreenStar displays:

1. Press the INFO button
2. Select “Recent Problems”
3. Press the button next to “Fault Codes” to clear

Universal Battery Disconnect Method

This method works as a last resort for all John Deere equipment types:

1. Shut down the engine completely and remove key
2. For equipment with SCR systems, wait for the auto-purge cycle to complete (up to 4 minutes)
3. Disconnect both battery terminals (negative first)
4. Leave disconnected for at least one minute (15 minutes recommended for thorough reset)
5. Reconnect battery (positive terminal first)
6. Allow system to initialize

This technique effectively removes power from all electronic control units, clearing many stored fault codes and resetting system parameters.

Safety Considerations and Best Practices

Before attempting any fault code reset procedure:

• Park equipment on level ground
• Engage parking brake
• Shut down engine completely
• Remove ignition key to prevent accidental startup

Document all fault codes before clearing them. This creates a valuable reference for troubleshooting if codes return and helps identify patterns in equipment problems.

Important: Always address the underlying mechanical or electrical problem before clearing codes. Simply resetting without fixing the root cause will result in codes returning quickly after operation resumes.

What to Do When Codes Return Immediately

If fault codes return right after clearing, it indicates an active problem requiring attention:

1. Check electrical connections related to the specific code
2. Inspect relevant sensors for damage or contamination
3. Verify fluid levels and mechanical components
4. Use online resources or manuals to troubleshoot specific codes

Persistent codes often require systematic troubleshooting to identify and correct the underlying cause. For complex issues, consider these approaches:

• Inspect wiring harnesses for damage or loose connections
• Check for blown fuses related to the affected system
• Test sensor functionality using a multimeter when possible
• Clean electrical connections that might be affected by corrosion
• Look for mechanical damage that could trigger sensor warnings

Limitations of Manual Reset Methods

While these manual procedures can effectively clear many fault codes, they have important limitations:

• Some codes require calibration procedures only possible with professional equipment
• Codes related to safety-critical systems may have regulatory implications
• Complex diagnostics involving multiple systems typically exceed DIY capabilities
• Equipment under warranty may have specific requirements for code clearing

For these situations, professional diagnostic equipment provides capabilities for advanced troubleshooting and comprehensive code management that manual procedures simply can’t match.

Model-Specific Tips

For 5 Series Economy Models

The information button on these models requires precise timing—hold for exactly 5 seconds, not more or less, to access the diagnostic menu.

For 8R Series

These tractors have enhanced security features. If the battery disconnect method doesn’t work, you may need the dealer-specific security access codes.

For Z900 Series Mowers

The diagnostic light flashes in patterns—count the flashes carefully, as the number and timing of flashes indicate specific problems. Short flashes followed by long flashes create a code sequence that corresponds to specific issues.

For Gen 4 Display Systems

Make sure to save any custom settings before performing a reset, as clearing codes may reset some user preferences on these advanced systems.

Being able to reset John Deere fault codes without professional scanners gives you valuable flexibility, especially when working in remote locations or during critical work periods. However, remember that these manual procedures are typically temporary solutions that allow continued operation until proper diagnosis and repair can be arranged.

When used appropriately, these reset methods can help maintain equipment uptime while ensuring you address the underlying issues properly for long-term reliability.
