Dealing with the 10R140 transmission in your Ford is no walk in the park. Common issues like harsh shifting and delayed engagement can turn driving into a nightmare. This blog post dives into these problems and reveals practical solutions. If you want smoother rides and longer-lasting performance, stick around to discover how to tackle these transmission troubles head-on.
Overview of the 10R140 Transmission
The Ford 10R140 is a 10-speed transmission designed to provide optimal performance and fuel efficiency. It has distinct performance advantages and features that set it apart from other options. Below, you’ll find more details about its history, technical specifications, and how it compares to the 10R80 transmission.
History and Development
The 10R140 transmission was introduced in Ford’s heavy-duty trucks, including the F-Series Super Duty lineup, starting in 2020. Its development focused on enhancing towing capabilities and durability. This transmission was created to handle the increased torque and power demands of modern engines, making it suitable for trucks and commercial vehicles.
One of the significant changes from previous transmissions is its 10-speed design. This feature aims to offer smoother shifts and enhanced fuel economy. By adopting advanced engineering techniques and materials, the 10R140 has become a cornerstone of Ford’s heavy-duty vehicle offerings.
Technical Specifications
The 10R140 transmission features a 10-speed automatic design, which provides a wide range of gear ratios. These ratios give you better control over speed and power, especially when towing or driving off-road. It is equipped with an advanced torque converter that ensures efficient power transfer between the engine and the wheels.
Another standout feature is its high-pressure oil pump, which supports the transmission’s internal functions. This design allows for both improved shift quality and reduced wear over time. Additionally, it incorporates features like dynamic veins for improved fluid management, enhancing the overall reliability of your driving experience.
Comparison with the 10R80 Transmission
Both the 10R140 and the 10R80 are part of Ford’s 10-speed transmission family, but they serve different purposes. The 10R140 is built for heavy-duty applications, offering more robust construction to handle higher torque outputs. On the other hand, the 10R80 is often found in lighter vehicles like the Ford Mustang and F-150, focusing on a balance of performance and fuel efficiency.
While both transmissions aim for smoother shifting and performance improvement, the 10R140 provides added durability required for commercial and towing tasks. Choosing between them generally depends on your vehicle needs, emphasizing either high performance or heavy-duty reliability.
Symptoms and Diagnostics
Experiencing problems with the 10R140 transmission can affect your vehicle’s performance in several ways. It’s vital to be aware of specific symptoms and know how to diagnose them effectively. Common issues can often be linked to shift quality, fluid levels, and downshifting performance.
Identifying Shift Quality Issues
Shift quality problems often manifest as harsh engagement, hard shifts, or delays in shifting. If you notice these symptoms, your transmission might have harsh engagement or delayed shifting issues. It’s important to pay attention to any unusual noises during shifts, as these could indicate more serious underlying issues. Diagnostic Trouble Codes (DTCs) such as P0729 through P0734 may appear, illuminating the malfunction indicator lamp (MIL) on your dashboard.
Addressing shift quality problems right away can prevent further damage. Regular maintenance checks can also help catch these issues early. Routine inspections by a qualified technician will often involve checking for DTCs and assessing the electronic control module’s data.
Recognizing Low Fluid Indicators
Low fluid levels can cause serious transmission issues, including overheating and poor performance. You might notice symptoms like delayed gear shifting or slipping, which could indicate low transmission fluid. The fluid is crucial for lubricating components and maintaining hydraulic pressure necessary for smooth operation.
Check the transmission fluid regularly and look for signs of leaks under your vehicle. The dipstick can help determine if the fluid is low. It’s also important to use the correct type of fluid as specified by the manufacturer to avoid incompatibility issues. Regular maintenance, including fluid top-ups and changes, helps maintain optimal transmission performance.
Assessing Performance and Downshifting Anomalies
Performance problems can often be traced back to downshifting issues where the transmission doesn’t shift down smoothly when decelerating. If you experience sudden jerks when slowing down or notice your vehicle doesn’t respond well to throttle changes, these may indicate a downshifting problem.
Monitor for any anomalies in downshifting during driving. You might need to refer to workshop manuals to check if recent updates or parts replacements could affect performance. Regular diagnostics ensure your transmission adapts well to real-world driving conditions, preserving the longevity and reliability of your vehicle’s transmission system.
Common 10R140 Transmission Problems
Dealing with 10R140 transmission problems can be challenging. Key issues include difficulties with the F clutch assembly, a malfunctioning valve body, concerns with the CDF drum, and a faulty transmission control module (TCM). Each problem affects performance and longevity in different ways.
Issues with F Clutch Assembly
The F clutch assembly in the 10R140 transmission is crucial for smooth gear changes. Problems can arise when there’s wear or damage to the clutch components. Symptoms include slipping during gear shifts or a noticeable lack of power when accelerating.
If you’re experiencing these problems, it might be due to worn-out friction materials or a leaking hydraulic circuit within the clutch assembly. Regular maintenance and timely repairs can prevent further damage and ensure smoother operation of your transmission.
Malfunctioning Valve Body
The valve body is another common trouble spot in the 10R140 transmission. It controls the flow of hydraulic fluid that helps engage and disengage gears. A malfunctioning valve body can lead to harsh engagement, delayed shifts, or even overheating.
You might notice rough gear changes or a check engine light if the valve body isn’t working correctly. Issues often stem from accumulated debris or internal wear, and replacing or cleaning the valve body can restore proper function.

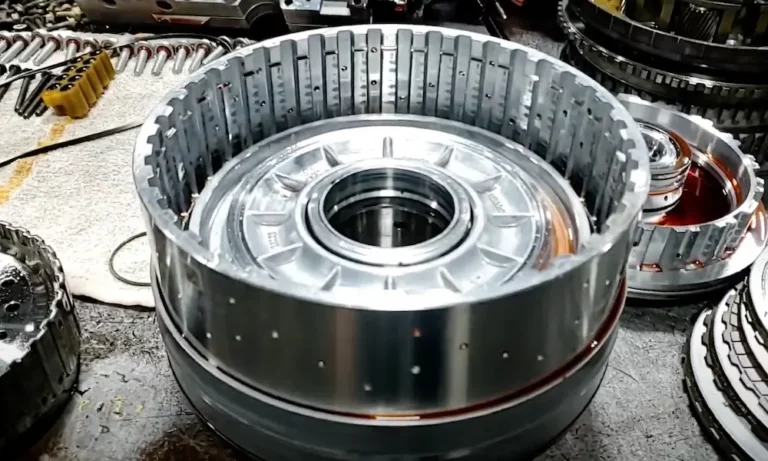

CDF Drum Concerns
Concerns with the CDF drum are prevalent among 10R140 transmission users. The drum plays a significant role in shifting mechanisms, and any issue can compromise the transmission’s performance. Common problems include cracking or warping caused by excessive heat and stress.
When the CDF drum is compromised, it can result in erratic shifting or complete transmission failure. Monitoring fluid levels and temperatures can help prevent these issues, as they are often heat-related. Regular inspections can catch early signs of damage.
Defective Transmission Control Module (TCM)
A defective Transmission Control Module (TCM) can create numerous challenges in 10R140 transmissions. The TCM is responsible for managing the electronic components that control shifting and transmission performance. Malfunctions here can lead to delayed responses or even a non-responsive transmission.
If you encounter persistent shifting issues or get diagnostic trouble codes, the TCM could be to blame. In many instances, reprogramming or replacing the TCM can solve these issues. If you experience frequent electronic faults, consider inspecting the associated wiring and connections.
Remember, addressing these issues promptly can help maintain the longevity and performance of your 10R140 transmission.
Repair and Replacement Options
When dealing with the Ford 10R140 transmission, you have a few options for repair and replacement. This includes upgrading the clutch packs, overhauling the main control, or opting for a total transmission replacement.
Clutch Pack Upgrades
Upgrading the clutch pack can enhance your transmission’s performance. It involves replacing worn-out clutch plates to ensure smoother shifting.
By investing in more durable clutch materials, you can minimize future wear and tear. Costs typically range from $500 to $1,000. A clutch pack upgrade is often a practical choice if you experience slipping gears or jerky movements.
This upgrade can extend your transmission’s lifespan and improve driving experience. It’s a popular solution for common 10R140 issues.
Main Control Overhauls
A main control overhaul targets the transmission’s main control unit, which manages fluid pressure and gear shifts. This process involves cleaning, repairing, or replacing key components like the valve body and solenoids.
If your 10R140 suffers from harsh or delayed shifts, a main control repair might be necessary. This option can cost between $300 and $1,200, depending on the complexity of the issue.
Regular maintenance of the main control unit can prevent severe damage and extend your transmission’s life. It’s crucial for maintaining consistent performance.
Total Transmission Replacement
In some cases, a total transmission replacement is the best solution. If your 10R140 has severe internal damage or frequent breakdowns, replacing the entire unit can be more cost-effective in the long run.
This option might cost several thousand dollars but it ensures that all components are new and fully functional. A complete swap is particularly beneficial if ongoing repairs have become too frequent or expensive.
Consider this route when repair costs start outweighing the value of the vehicle or if you want peace of mind with a fresh start.
Case Studies and Real-World Scenarios
Exploring real experiences helps to paint a clearer picture of the 10R140 transmission issues encountered in vehicles like the 2020 F350. Here are some reported experiences from owners dealing with transmission troubles.
2020 F350 Owner Experiences
Many 2020 F350 owners report issues with the 10R140 transmission. Common problems include harsh shifting, which can make driving less smooth. Some drivers also face delayed shifts or the transmission sticking in gear.
These issues might lead to engine or throttle surges, causing frustration on the road. Several owners have sought help from dealerships, reporting varying success with fixes. Some had to return multiple times for repairs.
For additional details, you might want to see discussions in online forums. A forum thread highlights these concerns, reflecting a shared community sentiment among 2020 F350 owners.
