Ever noticed your GM truck shuddering when you accelerate? Or maybe it’s slamming into gear with enough force to spill your coffee? You’re dealing with a notorious issue in many GM vehicles. The 6-speed automatic transmission (particularly the 6L80/6L90 series) has developed quite a reputation among owners—and not the good kind.
Let’s break down what’s happening inside your transmission, why these problems develop, and what you can actually do about them without getting lost in mechanic-speak or emptying your wallet.
What is the GM 6-Speed Transmission?

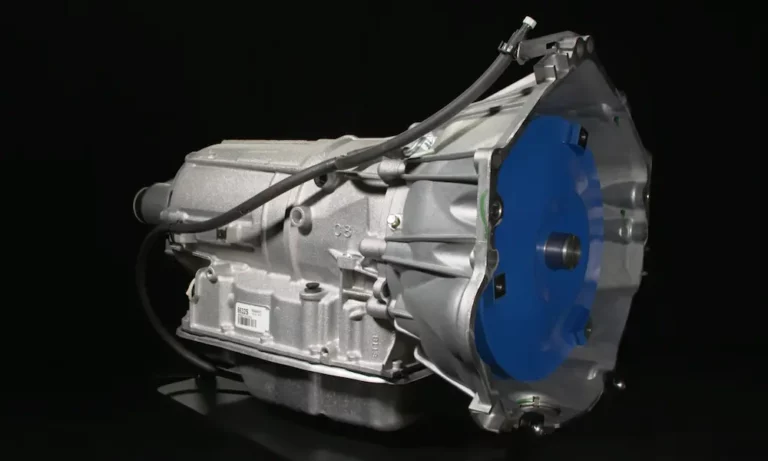

The Hydra-matic 6L80/6L90 is a six-speed automatic transmission GM started using in 2006, first in Corvettes and certain Cadillac models before rolling it out to trucks in 2007. It’s found in a huge range of vehicles including:
- Chevrolet Silverado and GMC Sierra trucks
- Tahoe and Suburban SUVs
- Cadillac Escalade models
- Various other GM vehicles from 2006-2018
This transmission was designed for heavy-duty applications—handling vehicles up to 8,600 pounds with gross weights up to 14,000 pounds. It features a sophisticated electronic control system managed by a Transmission Control Module (TCM) that’s actually built into the transmission itself.
Common GM 6-Speed Transmission Problems
1. Harsh Shifting
The most frequent complaint is brutal shifting, especially between certain gears. If your vehicle feels like it’s slamming into gear, you’re not alone. Owners consistently report:
- Rough shifts from 2nd to 3rd gear, especially when the engine is cold
- Harsh downshifts when coming to a stop
- Shifts forceful enough to “shake the truck hard”
GM has acknowledged this issue in technical service bulletins, confirming it’s a known problem.
2. Delayed Engagement
Another frustrating issue is delayed engagement—particularly when shifting into reverse. You put the shifter in reverse, but there’s a noticeable lag before the transmission actually engages. This creates a safety concern, especially in busy parking lots or on hills.
3. Transmission Shuddering
Feel a vibration or shudder during acceleration? This is typically linked to torque converter clutch problems. The clutch material wears unevenly, creating a vibration that you can feel throughout the vehicle. Like a washing machine with an unbalanced load, this shuddering typically gets worse over time as the components deteriorate further.
4. Slipping Gears
Transmission slipping manifests as unexpected shifts out of gear or failure to properly engage. You might notice your engine revving higher without corresponding acceleration. This is particularly concerning because it often leads to complete transmission failure if not addressed quickly.
5. Overheating Issues
Transmission overheating is both a symptom and cause of further problems. According to one TSB, “Some customers may also comment on above normal transmission fluid temperature.” This overheating accelerates the breakdown of transmission fluid and leads to premature component wear.
6. Fluid Leaks
Leaking is another common problem with these transmissions. These leaks can occur at:
- The pan gasket
- Various seals
- Cooler lines
Low fluid levels resulting from leaks can cause significant transmission damage.
What’s Actually Breaking Inside: Technical Breakdown
Torque Converter Flaws
The torque converter is a major culprit in these transmissions. The original design uses a stamped steel base with welded lugs that create uneven hardened areas. These areas flex under torque, leading to uneven application and wear of the clutch material.
When this material fails, debris circulates throughout the transmission system, potentially causing cascading failures in other components. Engineering analysis reveals that this continuous engagement and slippage creates excessive heat that accelerates wear on multiple components.
Valve Body Issues
The valve body—which controls fluid flow within the transmission—frequently develops problems in these units. Wear in components like:
- Pressure regulator valve bore
- Adaptive Force Learning (AFL) system
- TCC Reg
- Compensator feed bore
All these can lead to transmission performance issues. Frustratingly, some sources report that GM has been “replacing valve bodies with the same faulty valve body they installed previously,” suggesting an unresolved design issue.
Structural Failures
Multiple structural components have documented failure points:
- The 1-2-3-4 / 3-5-R clutch housing can develop cracks
- Clutch fluid seal rings on the transmission fluid pump cover assembly frequently leak
- The reverse drum may crack due to “fusion welding” techniques
- 4-5-6 clutch burnout and hub failures occur due to shift programming problems
The reverse drum issue is particularly concerning. As one technical source explains: “This component is what’s called friction or fusion welded… this area is actually known to crack and the common complaint we get with this is that it loses Drive shortly after or you have no drive because it’s completely broken.”
How GM Has Responded
Recalls and Technical Service Bulletins
GM has issued several transmission-related recalls and TSBs (Technical Service Bulletins) addressing various issues:
| Document Type | Issue Addressed | Affected Vehicles | Solution Provided |
|---|---|---|---|
| TSB | Harsh shifting, shudder, surging | Various models | Repair twisted cooler lines |
| TSB 09-07-30-004J | Harsh 2-3 shifts | Multiple models | Replace leaking clutch fluid seal rings |
| TSB 21-NA-199 | Multiple issues | 2015-2020 models with 6L80 | DIY fix ($75-$100) |
| Warranty Extension | Valve body issues | Select models | Extended coverage for valve body replacement |
General Motors has also issued broader recalls for transmission issues in later model vehicles, though many 6L80/6L90 problems have been addressed through service bulletins rather than full recalls.
The Transmission Fluid Controversy
Interestingly, there’s conflicting information about transmission fluid’s role in these problems:
- Some mechanics claim “the dexron 6 destroys the trans and the fluid itself is a major cause for rough shifting”
- GM’s position contradicts this, stating DEXRON-VI was specifically developed to improve transmission performance with “twice the durability and stability in friction tests”
- Other technical sources suggest that similar problems in 8-speed GM transmissions were resolved by switching to “Mobil 1 Synthetic LV ATF HP fluid”
This suggests that fluid formulation does play a significant role in transmission performance, though it may not be the root cause of all issues.
Solutions and Prevention Strategies
Fluid Service Approaches
One of the most accessible fixes involves transmission fluid:
- Fluid replacement: Some technicians recommend replacing factory transmission fluid with BG fluid as a potential fix
- Complete fluid flush: Technical reports describe success with Mobil 1 Synthetic LV ATF HP fluid: “Driving the vehicle for about a week improves shift quality even further as the new fluid cleans things up inside the transmission and the adaptive shift algorithms relearn various parameters”
- Regular maintenance: Prevention is better than cure—regular fluid services are recommended with products like BG Quick Clean for Transmissions before exchanging fluid
Component Upgrades
For more serious issues, component upgrades may be necessary:
- Billet torque converter upgrades: Aftermarket billet torque converter bases are available as an upgrade to the OEM stamped steel bases. These are “about twice as heavy as the original stock base” and have machined (rather than welded) pads for even hardness
- Rebuild kits with upgraded parts: Transmission rebuild kits with upgraded components like Raybestos Red HP clutches with black Kolene steel plates offer improved durability
- Electronic tuning: Some shops offer tuning modifications using HP Tuners software to:
- Disable the Displacement on Demand (DoD) feature
- Modify torque converter clutch engagement to only apply in higher gears
- Increase transmission pressure in lower gears
DIY Versus Professional Repairs
For those experiencing transmission issues, here’s a general guide on what you might tackle yourself versus when to seek professional help:
| DIY-Friendly Tasks | Professional Repairs |
|---|---|
| Fluid changes/flushes | Complete transmission rebuild |
| Pan gasket replacement | Torque converter replacement |
| External filter changes | Valve body repair/replacement |
| Basic diagnostic checks | Internal seal/clutch pack replacement |
| TSB 21-NA-199 ($75-$100 fix) | Programming/electronic recalibration |
Early Warning Signs to Watch For
Catching transmission problems early can save you thousands in repair costs. Be alert for these early warning signs:
- Occasional harsh shifts, especially when the transmission is cold
- Delayed engagement when putting the vehicle in gear
- Slight shuddering during steady acceleration
- Unusual noises like whining or clunking during gear changes
- Transmission fluid on your driveway (typically red or brown)
- Check Engine Light with transmission-related codes
Cost Expectations for Repairs
Transmission repairs range widely in cost depending on the specific issue:
| Repair Type | Approximate Cost Range |
|---|---|
| Fluid service/flush | $150-$300 |
| Valve body replacement | $600-$1,200 |
| Torque converter replacement | $800-$1,500 |
| Complete transmission rebuild | $2,000-$3,500 |
| Transmission replacement (remanufactured) | $3,000-$4,500 |
Long-Term Solutions
For those who plan to keep their GM vehicle long-term, consider these approaches:
- Proactive maintenance: Regular transmission fluid services before problems develop can extend transmission life
- Upgrade while repairing: If repairs are needed, opt for upgraded components rather than direct OEM replacements that may have the same design flaws
- Consider a 10-speed upgrade: For those with the budget, some shops offer conversion to the newer 10-speed transmission, though these have had their own (albeit different) issues
- Vehicle replacement: As one Reddit commenter suggested: “If your finances allow it then trade up to a new truck w/10 speed”
The Bottom Line
The GM 6-speed transmission problems represent a significant reliability concern across multiple vehicle models and years. While GM has addressed some issues through service bulletins, the fundamental design limitations persist in many vehicles.
Regular maintenance is your first line of defense. Being alert to early warning signs and addressing them promptly can help prevent catastrophic failure. For those experiencing persistent issues, upgrading components during repairs often provides better long-term results than simply replacing with identical OEM parts.
These transmission issues highlight the importance of thorough engineering validation and the need for manufacturers to properly address design flaws rather than implementing partial fixes. As an owner, staying informed and proactive is your best strategy for dealing with these problematic transmissions.
