4L60E vs 4L80E: Which GM Transmission is Right for Your Build?

Shopping for a GM transmission and stuck between the 4L60E vs 4L80E? You’re asking the right question. These two four-speed automatics look similar on paper, but they’re built for completely different jobs. Whether you’re swapping transmissions in your LS-powered truck or building a high-horsepower street machine, understanding the real differences will save you headaches and cash down the road.

What Makes the 4L60E and 4L80E Different?

Here’s the short answer: the 4L60E is GM’s lightweight workhorse, designed for half-ton trucks and passenger cars. The 4L80E is its bigger, tougher brother—built to handle heavy-duty trucks and serious torque.

The numbers in their names tell the story. The “60” means the 4L60E handles vehicles up to 6,000 lbs. The “80” indicates the 4L80E tackles rigs up to 8,000 lbs. But weight ratings barely scratch the surface of what separates these transmissions.

Size and Weight: The Physical Reality

If you’re planning a swap, the dimensions matter more than you’d think.

The 4L80E is nearly 3 inches longer than the 4L60E—26.4 inches versus 23.5 inches. That’s not huge until you’re cutting a driveshaft and relocating a crossmember at midnight in your garage.

Weight? The 4L80E tips the scales at 236 lbs dry. The 4L60E weighs just 150 lbs. That’s an 86-pound difference. In a drag car, that’s precious weight you don’t want. In a tow rig, that extra mass acts as a heat sink during long pulls.

Here’s a quick comparison of the physical specs:

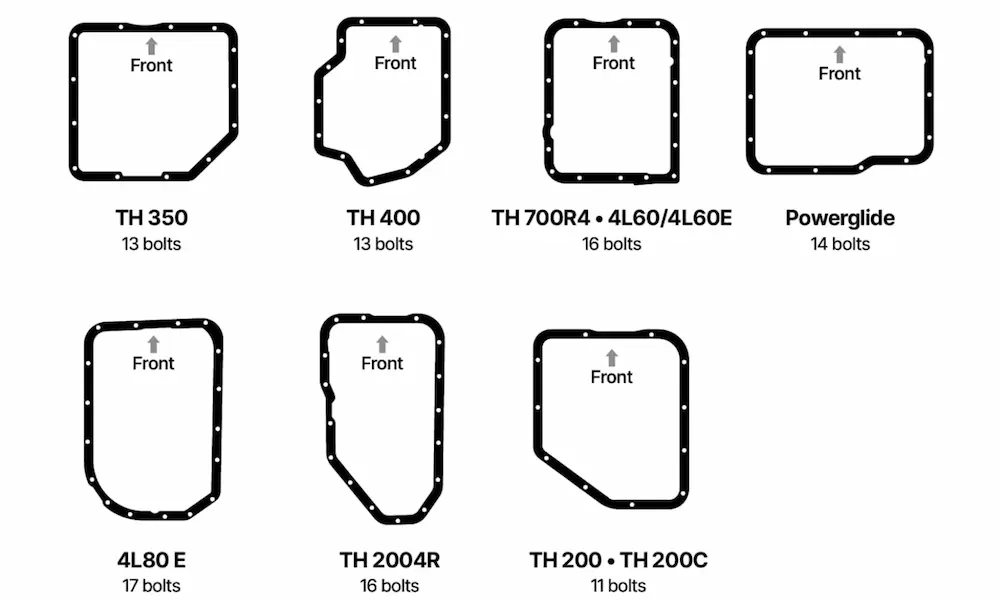

You can spot these transmissions from underneath without even checking a VIN. The 4L60E has a rectangular pan with 16 bolts. The 4L80E rocks an oval pan with 17 bolts. Simple visual ID trick.

Gear Ratios: Where Driving Character Lives

This is where things get interesting. The gear ratios between the 4L60E vs 4L80E create completely different driving experiences.

The 4L60E uses a steep 3.06:1 first gear. That aggressive ratio helps underpowered vehicles jump off the line. Your grandma’s Tahoe feels peppy from a stop because of that deep first gear.

The 4L80E starts with a taller 2.48:1 first gear. It won’t snap your neck from a stoplight. But here’s why that matters: the shift from first to second is way smoother.

Check out the ratio spread:

See that massive drop from 3.06 to 1.625 on the 4L60E? That’s a recipe for falling out of the powerband during the 1-2 shift. The engine RPM drops like a stone. Your torque converter has to slip to catch up, which generates heat.

The 4L80E’s closer ratios (2.48 to 1.48) keep the engine in its sweet spot. That’s why heavy-duty transmissions use close-ratio gearsets—they prioritize sustained power delivery over stoplight heroics.

The overdrive tells another story. The 4L60E’s 0.70:1 overdrive ratio drops your highway RPM lower than the 4L80E’s 0.75:1. Better fuel economy in the 60E, slightly higher cruise RPM in the 80E.

Internal Strength: What’s Under the Aluminum Case?

Pop the pans open and you’ll see where the real differences live.

Planetary Gear Sets

The 4L60E uses a 4-pinion planetary carrier in base form. High-performance versions (like the 4L65E in the Silverado SS) got upgraded to a 5-pinion setup. More pinions spread the torque load across more teeth.

The 4L80E? It inherited massive planetary gears straight from the legendary TH400. These components are physically larger, wider, and built like farm equipment. They’re helical-cut from the factory for quiet operation, but serious racers swap to straight-cut gears to eliminate axial thrust loads at 1,000+ horsepower.

Shafts and Splines

The input shaft is your torque pathway. Weak shaft equals broken transmission.

The 4L60E typically uses a 30-spline input shaft. It’s adequate for stock applications. Push 500 lb-ft through sticky tires on a hard launch? That shaft twists like a pretzel.

The 4L80E runs a beefy 32-spline input shaft. Thicker diameter, higher polar moment of inertia, way more resistance to torsional shear. This shaft laughs at boosted launches that would snap a 60E.

The Infamous 3-4 Clutch Pack

This is where the 4L60E shows its Achilles’ heel.

The 3-4 clutch pack in the 4L60E is small—physically limited by case size. Under heavy load, especially during the 2-3 shift or towing in overdrive, this tiny clutch pack can’t hold the torque. It slips, burns, and dies. Ask any transmission shop what fails most on a 4L60E, and they’ll point to the 3-4 clutches.

The 4L80E inherited large-diameter clutch drums from the TH400. Vastly more friction surface area. These clutches clamp down with enough force to hold torque levels that would turn a 4L60E into metal confetti.

Electronic Controls: The Brains Behind the Shifts

Both transmissions earn the “E” designation because they’re electronically controlled by your PCM (Powertrain Control Module). But the control strategies differ in ways that complicate swaps.

Solenoid Logic

The 4L60E uses two shift solenoids (A and B) in binary states to create four gear combinations. Simple enough.

The 4L80E also uses two shift solenoids, but the firing order is different. If you plug a 4L80E into a PCM programmed for a 4L60E without changing the software, bad things happen. The transmission might try to engage two gears simultaneously (mechanical bind) or default to limp mode (stuck in second gear).

The Critical Input Speed Sensor

Here’s a technical detail that trips up DIY swappers.

The 4L60E relies on a single Output Speed Sensor (OSS) in the tail housing. It calculates input speed based on engine RPM, assuming the converter is locked.

The 4L80E has two external speed sensors: an Input Speed Sensor (ISS) near the bellhousing and an OSS at the tail. The ISS measures exact turbine shaft speed after the torque converter.

Why does this matter? The ISS allows the PCM to monitor converter slip with laser precision. Without it, the 4L80E’s control strategy falls apart. When swapping, you must wire the ISS into your PCM (typically pins 22 and 23 on the Red/Green connector) or the transmission won’t shift properly.

Swapping from 4L60E to 4L80E: The Real-World Process

The 4L60E to 4L80E swap is a rite of passage for GM truck enthusiasts. A stock 4L80E often outlasts a “built” 4L60E, which makes the swap attractive. But it’s not plug-and-play.

Crossmember Relocation

The 4L80E mount sits 2-6 inches further back than the 4L60E, depending on your chassis. GMT800 Silverados have flat frame rails that make crossmember relocation easier. F-body Camaros? Not so much.

You’ll either weld new mounting tabs or buy an aftermarket tubular crossmember designed for the swap (companies like ICT Billet and G-Force make them). Don’t guess on driveline angle—maintain around 3 degrees down at the pinion to avoid vibration.

Driveshaft Surgery

That extra 3 inches of transmission length means your driveshaft is now too long. Most swaps require shortening the shaft by 1.5-3 inches. Measure twice, cut once.

The 4L60E uses a 27-spline slip yoke. The 4L80E needs a 32-spline yoke. You’ll also likely step up from a 1310 U-joint to a 1350 series. Conversion U-joints exist (like the Spicer 5-460X) if you’re keeping the factory shaft.

Wiring and Electronics

Physical wiring requires “re-pinning” the connector. Here’s the critical modification:

The Brown wire (TCC PWM signal) on the 4L60E sits at Pin U. On the 4L80E, TCC control lives at Pin S. You must move the Brown wire from Pin U to Pin S. The White wire (3-2 downshift solenoid on the 60E) gets removed entirely—the 4L80E doesn’t use it.

Then you need to wire in the Input Speed Sensor. Run two wires from the ISS pigtail (front driver side of the trans) to your PCM. For a typical 0411 PCM (LS1 style), these connect to Pin 22 and Pin 23 on the Red/Green connector.

PCM Tuning: The Software Segment Swap

Physical wiring means nothing without reprogramming your PCM. Using software like HP Tuners or EFI Live:

1. Open your stock tune file
2. Find a “donor” file from a 4L80E-equipped vehicle with the same Operating System ID
3. Perform a “Segment Swap” of the Transmission and Transmission Diagnostic segments

This overwrites the 4L60E shift logic with 4L80E logic, teaching the PCM the correct gear ratios, solenoid firing order, and how to interpret ISS data.

Other Swap Essentials

Torque Converter & Flexplate: The 4L80E converter uses a larger 11.5-inch bolt pattern with 6 bolts. The 4L60E uses 3 bolts. You need a 4L80E-specific flexplate. On LS engines, the 6.0L (LQ4/LQ9) came with the right flat flexplate and crank spacer. The 5.3L had a dished flexplate for the 4L60E. Don’t mix them up.

Dipstick: The 4L60E dipstick tube won’t fit the 4L80E case hole. You’ll need a dedicated 4L80E tube (often from a van application) or a flexible braided aftermarket unit.

Cooler Lines: The 4L80E’s cooling ports sit further apart and further back. Factory 4L60E lines won’t reach. Most builders use AN-6 adapters and braided stainless hose to extend the lines to the new ports.

Performance Capabilities: Built 4L60E vs Stock 4L80E

This is the million-dollar question: should you build a 4L60E or swap to a 4L80E?

The 4L60E’s Ceiling

A properly built 4L60E—with 5-pinion planets, a Beast sun shell, Z-Pak 3-4 clutches, and billet shafts—can handle 450-500 rear-wheel horsepower in a street car.

Push past 600 lb-ft of torque in a heavy truck? The 4L60E becomes a consumable part. The aluminum case deflects under load, causing internal misalignment. Bushings wear, planetaries crack, and you’re buying another rebuild. It’s a light-duty design stretched to its absolute limit.

The 4L80E’s Advantage

A stock 4L80E conservatively handles 450-500 lb-ft of torque. Add an HD-2 shift kit (increases line pressure) and proper tuning, and stock units routinely survive 700-800 HP in turbocharged LS applications.

The trade-off? Parasitic loss. The massive rotating assembly inside the 4L80E requires more energy to spin. You’re looking at 20-30 more horsepower consumed through parasitic drag compared to a 4L60E. In a low-horsepower application (stock 5.3L), that makes the vehicle feel sluggish.

But for durability? The 4L80E absorbs heat and shock loads that would shred a 60E. It’s the go-to transmission for serious towing and drag racing where reliability trumps everything.

Maintenance and Fluid Requirements

Both transmissions originally used Dexron III, but they’re backward compatible with modern Dexron VI.

Fluid capacity differs significantly:

4L60E:

• Pan drop service: 5 quarts (standard pan), 6 quarts (deep pan)
• Total dry fill: 11-12 quarts

4L80E:

• Pan drop service: 7.7 quarts
• Total dry fill: 13.5-14 quarts

The 4L80E’s larger fluid volume creates a bigger thermal buffer. That extra fluid capacity helps maintain stable temperatures during extended towing sessions or repeated drag passes.

Cost Analysis: What You’ll Actually Spend

Let’s talk money.

Core Costs:

• 4L60E: Abundant and cheap. Cores run $100-$300. But rebuilds get expensive because hard parts (shells, drums, clutches) often need replacement.
• 4L80E: Harder to find since they only came in 2500/3500 trucks. Used cores command $500-$900. However, internal hard parts rarely break, making rebuild kits cheaper (mostly soft parts like seals and clutches).

The Swap Investment:

A complete 4L60E to 4L80E swap includes:

• Custom torque converter: $600+
• Driveshaft modifications: $200-$400
• Crossmember: $200-$400
• PCM tuning: $300-$500
• Miscellaneous hardware, adapters, lines: $200-$300

Total swap cost typically lands between $2,000-$3,500.

Here’s the kicker: that’s roughly the same as a high-end “built” 4L60E ($2,500-$3,500). The difference? The 4L80E at that price point is just getting started on its capability curve. The built 4L60E is already maxed out.

Which Transmission Should You Choose?

The answer depends on your build goals.

Stick with the 4L60E if:

• You’re running stock or mildly modified power (under 400 HP)
• Weight and packaging matter (tight transmission tunnel, autocross car)
• Fuel economy is a priority
• You don’t tow heavy or race with slicks

Swap to the 4L80E if:

• You’re building a high-horsepower engine (500+ HP)
• You regularly tow heavy trailers
• You drag race or do burnouts on sticky tires
• You want “set it and forget it” reliability
• You don’t mind the weight penalty and slightly worse fuel economy

The 4L60E vs 4L80E debate isn’t about which transmission is “better.” It’s about matching the tool to the job. The 4L60E is GM’s lightweight multitasker—adequate for daily driving and mild builds where efficiency matters. The 4L80E is the anvil—overbuilt, heavy, and designed to survive environments that would destroy lesser transmissions.

If you’re building a 600-horsepower street truck, towing a race car to the track every weekend, or just want to sleep well knowing your transmission won’t grenade, the 4L80E is worth every penny of the swap cost. The complexity of relocating crossmembers, shortening driveshafts, and rewiring electronics is your entry fee to access bulletproof reliability.

Choose based on what you’re actually going to do with the vehicle, not what sounds cool on the internet. Your wallet and stress levels will thank you.
