Is your GMC Sierra’s power outlet giving you the silent treatment? Whether you’re trying to charge your phone on a road trip or power tools at a job site, a non-functional outlet can quickly become more than just an inconvenience. The good news is that in most cases, you can diagnose and fix the problem yourself without an expensive trip to the dealership.
Most Common Causes of Power Outlet Failure
Blown Fuses: The Usual Suspect
When your GMC Sierra’s power outlet stops working, a blown fuse is the culprit about 70% of the time. The fuses that protect your power outlets vary depending on your Sierra’s model year:
- 2003-2006 models: Look for a 20A “auxiliary power” fuse (light green) under the hood and a 15A “cigarette lighter” fuse (blue) in the cabin
- 2014-2018 models: Check the 15A cartridge fuses for accessory outlets and a 50A red fuse for retained accessory power
- 2022 models: You’ll need to inspect fuse F27 (FMX/JCase) for retained accessory power and F28 (MICRO2) for battery-powered outlets
Fuse locations in your Sierra aren’t always obvious. You’ll generally find them in two places:
- Under-hood fuse boxes: These typically contain the higher-amperage fuses (20A-50A) that protect main circuits
- Cabin fuse panels: Located on the driver or passenger side dash, these house lower-amperage fuses (10A-20A) for secondary systems
To check if a fuse is blown, you can either use a multimeter or simply look for broken filaments in the fuse. If you need to replace a fuse, always match the original amperage rating – using a higher-rated fuse might seem clever but can damage your truck’s electrical system.
Wiring and Connector Problems
If the fuses look good, wiring issues are the next likely culprit. About 25% of power outlet failures stem from faulty wiring connections. The most common problem areas include:
- Loose harness connectors: These can work themselves free due to normal driving vibration, especially those behind the dashboard or under seats
- Corroded terminals: A particular problem if you live in coastal areas or drive on winter roads treated with salt
- Pinched wires: Often found near movable components like your center console lid or sliding rear windows

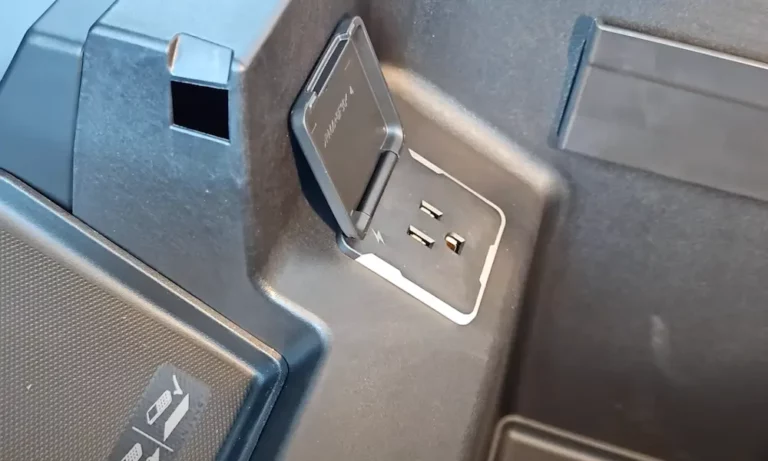

The 110V bed-mounted outlet in 2017-2023 Sierra trucks is especially prone to wiring faults since its harness routes through the frame rail and bed liner. Here’s how to check for wiring problems:
- Use a test light to verify you’re getting 12V at the outlet’s positive terminal
- Check continuity between the outlet ground and chassis
- Inspect inline harness connectors, such as C210 at the driver kick panel
Outlet Mechanism Failures
Sometimes the physical outlet itself fails. This happens for several reasons:
- Spring contact deformation: Caused by plugging in oversized adapters or devices
- Heat damage: Results from running high-current devices like air compressors for extended periods
- Water damage: Common in bed-mounted outlets left uncovered during rain or car washes
To test the outlet mechanism, try inserting a known working device while measuring voltage drop across the outlet terminals. If you see a drop greater than 0.5V, you’ve got excessive resistance in the outlet itself.
Model-Specific Repair Procedures
2007-2013 Sierra 1500/2500HD
- Check these specific fuses first:
- Cabin fuse box (driver side): Look for Fuse 16 (20A)
- Engine bay fuse box: Check Fuse 53 (20A)
- Test the outlet directly:
- Remove the center console trim using a plastic pry tool
- Disconnect the 4-pin harness (C422)
- Measure voltage between pin 1 (B+) and pin 4 (ground)
2019-2023 Sierra with 110V Inverter
- Try resetting the inverter:
- Turn your ignition to ON
- Press and hold the dash-mounted power outlet button for 10 seconds
- Replace these specific fuses:
- The 10A fuse in the passenger-side rear fuse block (PBAT-3)
- The 60A main inverter fuse (JBAT-19) under the hood
Step-by-Step Diagnostic Process
Start with the Basic Checks
- Verify the problem: Try multiple devices in the outlet to confirm it’s truly non-functional.
- Check power mode requirements: Some Sierra outlets only work when the ignition is in “RUN” or “ACC” position, not “OFF.”
- Inspect for visible damage: Look for bent pins, melted plastic, or debris inside the outlet.
- Test nearby outlets: If your Sierra has multiple outlets, check if others are working to help isolate the problem.
Fuse Inspection and Replacement
- Locate your fuse panels: Check your owner’s manual for exact locations specific to your model year.
- Identify the correct fuses: Use the fuse diagram on the panel cover or in your manual.
- Visual inspection: Remove suspected fuses using the plastic puller tool (usually provided in the fuse box).
- Replace blown fuses: If you find one with a broken metal strip inside, replace it with a new fuse of identical amperage.
| Outlet Type | Common Fuse Locations | Typical Fuse Ratings |
|---|---|---|
| Dash 12V outlet | Instrument panel fuse block | 15-20A |
| Center console outlet | Interior fuse panel | 15-20A |
| Rear seat outlet | Rear fuse block | 10-15A |
| Bed 110V outlet | Under-hood distribution block | 40-60A |
Advanced Wiring Diagnostics
If the fuses are good but the outlets still don’t work, it’s time to check the wiring:
- Access the outlet wiring:
- For dash outlets, carefully pry off trim panels
- For console outlets, remove cupholders or storage bin inserts
- For bed outlets, check access panels under the truck or behind bed liners
- Check for voltage:
- Use a multimeter set to DC volts
- With the ignition in ACC or RUN, probe the wires at the back of the outlet
- You should see approximately 12-14.5 volts
- Inspect connectors:
- Look for the violet wire (Circuit 40), which carries switched 12V from the body control module
- Check the black/white wire (Circuit 1750), which provides the ground path
- Make sure connections are clean, tight, and free of corrosion
Diagnosing Specific Outlet Types
12V DC Outlets (Cigarette Lighter Style)
These traditional outlets are the most common in Sierra trucks and usually the simplest to fix:
- Check for foreign objects: Coins or debris can short out these outlets.
- Test the center pin: This spring-loaded pin should move freely. If it’s stuck, the outlet needs replacement.
- Measure output voltage: Should be 12-14.5V DC depending on whether the engine is running.
110V AC Outlets (Household Style)
The 110V outlets in newer Sierras require more complex diagnostics:
- Verify inverter operation: Press the dashboard power button – you should see an indicator light.
- Check load limits: These outlets typically handle 400W maximum. Trying to power devices that draw more current will trigger automatic shutdown.
- Test with a small appliance: Try a phone charger or small lamp before attempting to use power tools.
| Outlet Location | Maximum Power Rating | Common Issues |
|---|---|---|
| Instrument panel | 150W | Overheated by dashboard heat |
| Center console | 400W | Damaged by spilled drinks |
| Rear seats | 150-400W | Damaged by passengers |
| Truck bed | 400W | Water/debris intrusion |
Preventive Maintenance for Power Outlets
Keep your Sierra’s power outlets working reliably with these maintenance tips:
- Install rubber covers on unused outlets to prevent debris intrusion
- Add an inline fuse or circuit breaker for high-draw devices like refrigerators
- Apply dielectric grease to harness connectors during repairs
- Avoid using multi-plug adapters that can overload the circuit
- Don’t leave devices plugged in for extended periods when the truck is off
When to Replace the Outlet
Sometimes the outlet itself needs replacement. Here’s how to tell:
- Physical damage: Cracked housing, loose fit, or melted plastic are clear signs.
- Intermittent operation: If the outlet works only when jiggled or held at a certain angle.
- Overheating: If the outlet or plugged-in devices get unusually hot during use.
Replacement outlets generally cost $15-40 for parts, and installation difficulty varies by location. Dash outlets usually require trim removal, while bed outlets may need more extensive disassembly.
Sierra Power Outlet Circuit Protection
Your GMC Sierra’s electrical system incorporates several layers of protection:
- Standard fuses: The first line of defense, these blow when current exceeds their rating
- Circuit breakers: Some models use resettable breakers instead of fuses
- Thermal cutoffs: Built into the outlets themselves to prevent overheating
- Body Control Module protection: Modern Sierras use the BCM to monitor and protect circuits
Understanding these systems helps diagnose whether you’re facing a simple blown fuse or a more complex control module issue.
Electrical System Integration
Power outlets in modern Sierras are integrated with the vehicle’s broader electrical architecture:
- Retained Accessory Power (RAP): This system keeps outlets working for 10 minutes after the ignition is turned off
- Battery Run-Down Protection: Automatically disconnects accessories after a set time to prevent battery drain
- Load shedding: During low battery conditions, the truck will disable non-essential circuits, including some outlets
A malfunction in any of these systems can affect your power outlets even when the direct wiring is intact.
Troubleshooting Newer Models (2019-2023)
The latest Sierra generation uses more sophisticated power management:
- Check for software updates: Sometimes a dealer update can resolve outlet issues.
- Reset the Body Control Module: Disconnect the battery for 15 minutes, then reconnect.
- Scan for Diagnostic Trouble Codes (DTCs): Codes like B1325 (Accessory Power Relay Circuit) can identify specific issues.
- Use the in-vehicle diagnostics: Some models allow basic circuit testing through the infotainment system.
The integrated nature of these newer systems sometimes means that fixing outlet problems requires professional diagnostic equipment, particularly for the 110V AC outlets with built-in inverters.
By following this troubleshooting guide, you can identify and fix most GMC Sierra power outlet problems yourself, saving time and money while keeping your truck’s convenience features fully functional.
