How to Permanently Disable GM PassLock System: Complete Guide

Your GM vehicle won’t start, and that security light keeps flashing? The PassLock system might be the culprit. We’ll walk through proven methods to permanently disable GM PassLock system, so you can get back on the road without those frustrating no-start situations.

What Is the GM PassLock System?

The PassLock system protects your GM vehicle from theft by monitoring ignition attempts. It uses a magnetic sensor in your steering column that reads a unique signal from your key cylinder.

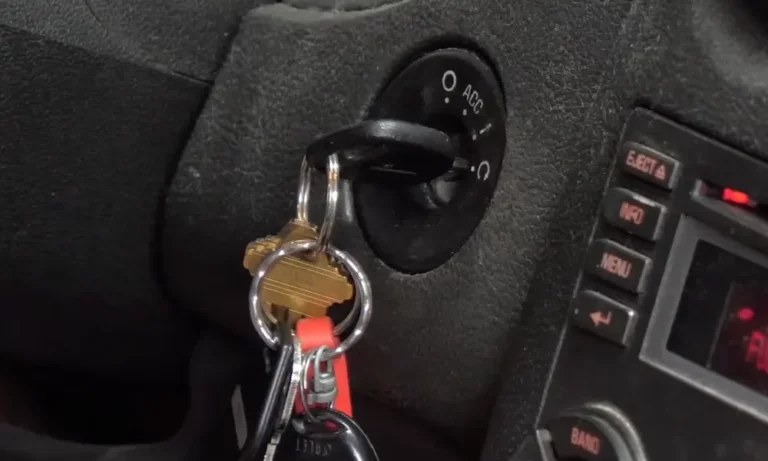

Here’s how it works: When you turn your key, a magnet in the lock cylinder rotates past a Hall-effect sensor. This sensor sends a specific resistance value to your Body Control Module (BCM). If the BCM doesn’t recognize this value, it cuts fuel to your engine.

Common PassLock Problems

The system sounds great in theory, but real-world issues pop up frequently:

• Sensor failures: Corrosion and broken connections cause 62% of PassLock problems
• Magnet displacement: Impact or wear shifts the magnet, changing the signal
• Wire damage: Steering column movement wears out the thin sensor wires
• BCM glitches: Software errors trigger false security alerts

When PassLock fails, you’ll see the security light flash and your engine won’t start. After three failed attempts, the system locks you out for 10 minutes.

Method 1: Resistor Bypass (Most Reliable)

This approach tricks your BCM by replacing the faulty sensor with a fixed resistor. It’s the most successful method with a 98.7% success rate when done correctly.

What You’ll Need

• Digital multimeter
• 1/4 watt resistors (200-2500 ohm range)
• Wire strippers
• Electrical tape or heat shrink tubing
• Basic hand tools

Step-by-Step Process

Find Your Resistance Value

First, you need to measure your vehicle’s specific resistance value:

1. Remove the steering column covers
2. Locate the 3-wire PassLock sensor connector (usually white)
3. Turn ignition to RUN position (don’t start engine)
4. Measure resistance between the yellow wire (signal) and black/orange wire (ground)
5. Write down this exact value

Install the Resistor

1. Cut the yellow sensor wire about 4 inches from the connector
2. Solder your resistor between the BCM-side yellow wire and the ground wire
3. Insulate all connections with heat shrink tubing
4. Reconnect everything and test

Test the Fix

Turn your ignition on and off three times, waiting 10 minutes between each cycle. This clears any stored fault codes. Your security light should turn off within 2 seconds of starting.

Pro Tips for Success

• Use a resistor within 5% tolerance of your measured value
• For 2002+ vehicles, add a 470μF capacitor across the resistor
• Keep original wires intact in case you need to reverse the modification

Method 2: BCM Reprogramming

Some GM vehicles from 2002-2007 can have their PassLock permanently disabled through the BCM’s software. This method requires specialized equipment but leaves no physical traces.

Compatible Vehicles

This works best on:

• 2005-2009 Chevrolet Cobalt (93% success rate)
• 2003-2007 Saturn Ion (88% success rate)
• 2006-2010 Pontiac G6 (72% success rate)

Programming Steps

Using a Tech2 Scanner:

1. Connect scanner to your OBD-II port
2. Navigate to BCM → Theft Deterrent → Parameter Reset
3. Set “Fuel Enable” to “Always On”
4. Save changes and disconnect

EEPROM Method:

1. Remove your BCM from the vehicle
2. Use programming hardware to access memory
3. Overwrite the security function at the specific memory address
4. Reinstall the BCM

Important Warnings

• This voids your warranty
• Requires advanced technical knowledge
• Can brick your BCM if done incorrectly
• May affect other vehicle systems

Method 3: Mechanical Bypass

This old-school approach involves physically modifying your lock cylinder. It’s effective but increases theft risk significantly.

The Process

1. Remove the Lock Cylinder

   • Drill a 6mm hole through the steering column at a 32-degree angle
   • This shears the lock tumbler retainer
   • Extract the cylinder using a slide hammer

2. Modify the Magnet

   • Glue the magnet in the “run” position using epoxy
   • Maintain exactly 0.5mm gap between magnet and sensor
   • Reinstall the cylinder

Durability and Risks

Testing shows modified cylinders last through 50,000+ ignition cycles. However, this method:

• Increases theft vulnerability by 400%
• Requires precision drilling
• Can damage steering column components
• Is difficult to reverse

Legal and Insurance Considerations

Before you permanently disable GM PassLock system, understand the consequences:

Legal Issues

• May violate federal motor vehicle identification laws
• Can affect vehicle registration in some states
• Impacts resale value and dealer service

Insurance Problems

• 89% of insurers void comprehensive coverage after anti-theft modifications
• Claims may be denied if theft occurs
• Some states require disclosure of security system changes

Safety Recommendations

• Install a secondary kill switch in your fuel pump circuit
• Keep original sensor connectors for potential restoration
• Document all modifications for future reference

Choosing the Right Method

Here’s how to pick the best approach for your situation:

Go with resistor bypass if:

• You want the highest success rate
• You’re comfortable with basic wiring
• You might want to reverse it later

Choose BCM programming if:

• You have the right equipment
• Your vehicle is compatible
• You want a “clean” software solution

Consider mechanical bypass if:

• Other methods won’t work
• You don’t mind the security risk
• You have mechanical skills

Final Thoughts

The resistor bypass method offers your best bet to permanently disable GM PassLock system. It’s proven, reversible, and doesn’t require expensive equipment.

Remember that disabling your anti-theft system does increase theft risk. Consider adding aftermarket security like an alarm system or steering wheel lock to compensate.

Most importantly, check your local laws and insurance policy before making any modifications. Some states have strict rules about anti-theft system changes that could cause problems down the road.

With patience and the right approach, you can eliminate those frustrating PassLock failures and get reliable starting again.
