Have an unpredictable idle in your GM vehicle? Your Idle Air Control (IAC) valve might need a reset. This critical component regulates airflow when your engine idles, and when it’s not working right, you’ll notice immediately. Let’s dive into how you can reset your GM’s IAC valve and get that smooth idle back without a trip to the mechanic.
What Is an IAC Valve and Why Does It Need Resetting?

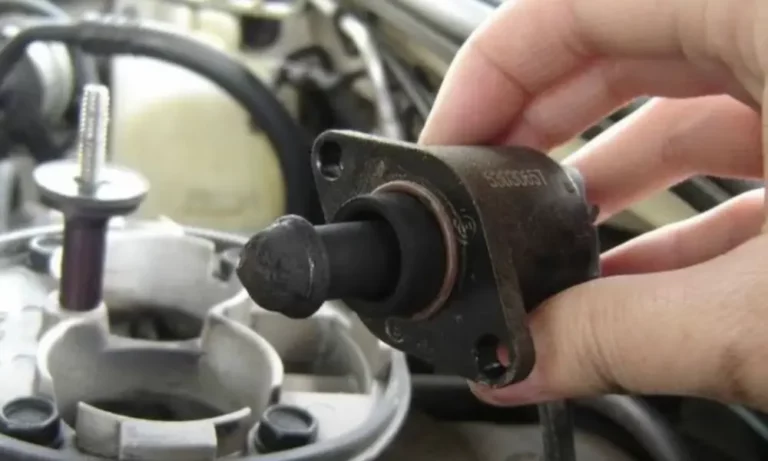

The Idle Air Control valve works behind the scenes to maintain your engine’s idle speed. It controls how much air bypasses the throttle plate when you’re idling, helping your engine run smoothly regardless of what accessories you’re using.
Over time, carbon buildup can interfere with its operation. When your IAC valve isn’t working properly, you’ll notice:
- Inconsistent or fluctuating idle speed
- Engine stalling when you stop
- Rough idling or vibrations at stops
- Engine dying at intersections
- Abnormally high or low idle RPMs
- Starting difficulties, especially in cold weather
Resetting the IAC valve often resolves these issues by allowing the engine’s computer to reestablish proper idle control parameters.
Tools You’ll Need for an IAC Reset
Before starting any reset procedure, gather these basic tools:
- Jumper wire (18-22 gauge)
- Basic socket set and wrenches
- Screwdriver (Phillips or flathead depending on your model)
- Throttle body cleaner (for cleaning procedures)
- Safety glasses
- Shop towels
Having these ready will make the process smoother and prevent interruptions once you start.
Standard ALDL Jumper Reset Procedure
This is the most common method for GM vehicles with throttle body injection (TBI) systems:
- Park your vehicle on level ground and set the parking brake
- Warm up the engine to normal operating temperature
- Locate the Assembly Line Diagnostic Link (ALDL) connector under the dashboard
- Place a jumper wire between terminals A and B (usually the two top row terminals on the far right)
- Turn the ignition to “ON” without starting the engine
- Wait 30 seconds to allow the IAC valve to fully seat
- Keep the ignition on and disconnect the IAC valve electrical connector
- Remove the jumper wire from the ALDL connector
After completing these steps, you’ll need to adjust the idle:
- Start the engine and let it reach normal operating temperature
- Set the parking brake and put an automatic transmission in drive
- Adjust the idle stop screw to achieve 500-550 RPM for automatic transmissions (600-650 RPM for manuals)
- Turn off the engine and reconnect the IAC valve connector
This reset procedure recommended by GM helps recalibrate the valve’s operation and often resolves minor idle issues.
Battery Disconnect Reset Method
If you prefer a simpler approach, try the battery disconnect method:
- Disconnect your vehicle’s negative battery terminal
- Wait approximately 30 seconds for the ECM memory to clear
- Reconnect the battery
- Jumper terminals A and B on the ALDL connector
- Turn the ignition to “ON” without starting the engine
- Wait about 30 seconds
- Turn the ignition off and remove the jumper
This method works by forcing a complete reset of the engine control module, which then relearns the proper IAC valve position during subsequent operation.
Quick Reset Procedure for Newer GM Models
Modern GM vehicles sometimes respond to this simplified procedure:
- Turn the ignition to the “ON” position without starting the engine
- Make sure the transmission is in “PARK”
- Press and hold the brake pedal
- Push the accelerator pedal all the way down
- Hold both pedals for approximately 5 seconds
- Release both pedals and start the vehicle
This process signals the engine computer to reset its idle parameters and can be effective on many newer models.
IAC Valve Cleaning and Reset
When simple reset procedures don’t solve the problem, cleaning the IAC valve often helps:
Step 1: Preparation and Removal
- Locate the IAC valve (typically mounted on the throttle body)
- Disconnect the negative battery terminal for safety
- Remove the electrical connector from the IAC valve
- Unscrew the mounting bolts and carefully remove the valve
Step 2: Cleaning Process
- Inspect the valve for carbon buildup
- Spray throttle body cleaner on the pintle (the moving part) and passages
- Use a soft brush if necessary, but avoid damaging the delicate components
- Allow the valve to dry completely before reinstallation
Step 3: Reinstallation and Reset
- Reinstall the cleaned IAC valve with new gaskets if needed
- Reconnect the electrical connector
- Reconnect the battery
- Perform one of the reset procedures described earlier
- Take the vehicle for a test drive to allow the computer to relearn idle parameters
Many idle issues are resolved after a thorough cleaning combined with a reset, as reported by automotive technicians.
Electronic Throttle Body Relearn Procedure
Newer GM vehicles with electronic throttle bodies require a different approach:
- Start the engine and let it idle in park for 3 minutes
- Turn the ignition off for 60 seconds
- Restart the engine and idle in park for another 3 minutes
- If proper idle isn’t achieved, drive the vehicle at speeds above 44 MPH
- Repeat if necessary by turning off the ignition for 60 seconds and restarting
This procedure allows the vehicle’s computer to recalibrate the electronic throttle control system properly.
Troubleshooting Common IAC Reset Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Reset didn’t improve idle | Carbon buildup too severe | Remove and clean IAC valve thoroughly |
| Engine stalls after reset | Incorrect idle adjustment | Readjust idle speed using idle stop screw |
| High idle after reset | Computer needs time to adapt | Drive vehicle normally for 50-100 miles |
| Reset worked temporarily | Failing IAC valve | Replace IAC valve |
| Can’t access ALDL connector | Obstructed by trim panels | Remove necessary trim pieces for access |
IAC Reset by GM Vehicle Type
Different GM vehicles may require slight variations in the reset procedure:
Chevrolet/GMC Trucks (1988-1995)
For these models, the standard ALDL procedure works best. The ALDL connector is usually located under the dash on the driver’s side. Make sure to adjust the idle speed according to your specific model requirements. The National Highway Traffic Safety Administration has documented optimal idle speeds for these vehicles.
Buick/Oldsmobile/Pontiac Models
These models often respond well to the battery disconnect method. Allow the vehicle to sit for at least 10 minutes after performing the reset before driving to give the computer time to establish baseline settings.
Corvette and Performance Models
Corvette owners have reported success with a modified procedure that includes disconnecting the IAC valve, starting the engine, running it for 10 seconds, shutting it off, reconnecting the IAC valve, and then performing the standard reset.
Modern GM Vehicles (2010 and newer)
For these vehicles, the quick reset procedure is typically most effective. If problems persist, consult your vehicle’s specific service manual as newer models may have model-specific procedures.
When an IAC Reset Might Not Be Enough
While an IAC reset solves many idle issues, be aware that sometimes the problem lies elsewhere:
- Vacuum leaks can mimic IAC valve problems
- EGR valve issues may affect idle quality
- Mass airflow sensor contamination can cause similar symptoms
- Throttle body deposits might restrict proper airflow
- Fuel pressure regulators can cause erratic idle when failing
If your reset doesn’t solve the problem, consider checking these related components or using an OBD-II scanner to check for diagnostic trouble codes.
Maintaining Your IAC Valve After Reset
To prevent future IAC valve issues:
- Use quality fuel with detergents to minimize carbon buildup
- Perform regular engine air filter changes
- Schedule periodic throttle body cleaning
- Consider fuel system cleaners that help reduce deposits
- Address check engine lights promptly to prevent cascading issues
Following these maintenance tips will help keep your idle smooth and reduce the need for future IAC resets.
Improving Performance After an IAC Reset
After resetting your IAC valve, you might notice immediate improvements in idle quality. To maximize these benefits:
- Drive normally for 50-100 miles to allow the computer to fully adapt
- Avoid aggressive acceleration during this learning period
- Ensure your engine reaches full operating temperature during drives
- Complete several drive cycles that include both city and highway driving
This approach helps the engine control module establish optimal parameters for various operating conditions.
With this comprehensive guide, you’re now equipped to tackle idle issues in your GM vehicle through proper IAC valve reset procedures.
