How to Program GMC Garage Door Opener: A Step-by-Step Guide

Ever pulled into your driveway and wished you could skip fumbling for that separate garage door remote? Your GMC vehicle’s built-in garage door opener system lets you do just that. Whether you have a brand-new Sierra or a few-year-old Terrain, I’ll walk you through programming your GMC’s garage door opener so you can open your garage with the touch of a button.

Understanding Your GMC’s Garage Door System

GMC vehicles come equipped with one of two garage door opener systems:

1. HomeLink Visor System – Built into your sun visor or overhead console
2. Universal Home Remote (UHR) – Integrated with your vehicle’s infotainment system (found in models from 2015 onward)

Both systems work with most garage door openers, operating on frequencies between 288–433 MHz and compatible with over 90% of garage door openers in North America. The main difference? HomeLink requires synchronization with your existing remote, while UHR may communicate directly with your garage door motor unit in some cases.

What You’ll Need Before Starting

Before jumping into programming, gather these essentials:

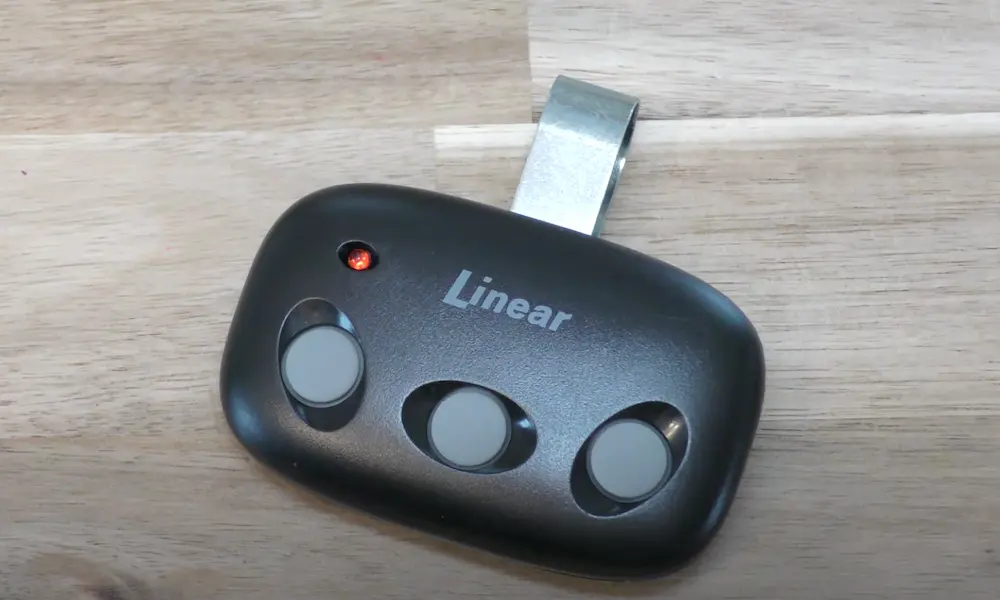

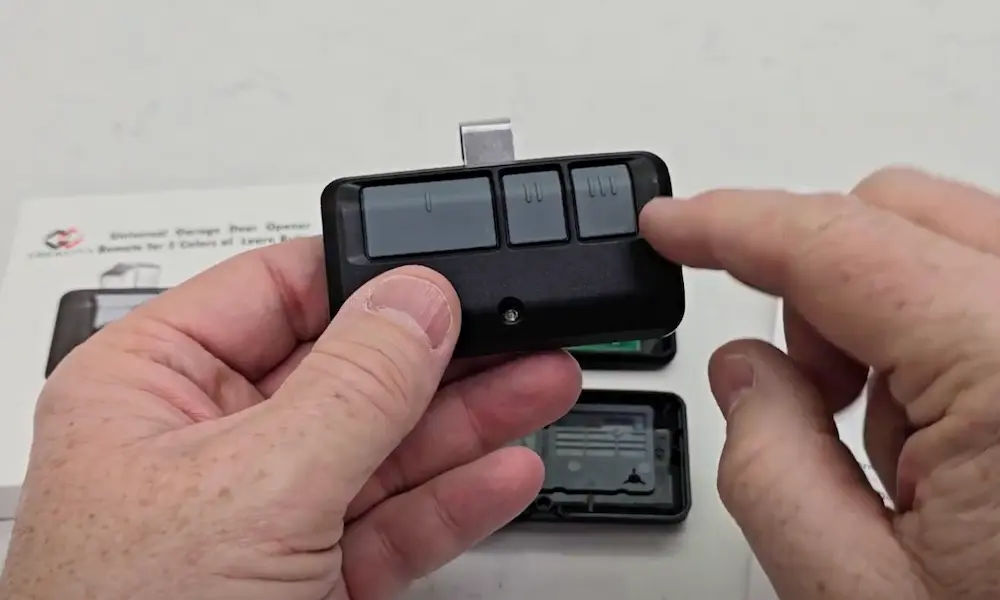

• Your original garage door remote control
• Fresh batteries in your remote
• Your vehicle with the engine running (or in ACC/ON mode)
• Access to your garage door opener’s motor unit (you might need a ladder)

Programming a Standard (Non-Rolling Code) Opener

If your garage door opener was manufactured before 2010, it likely uses a standard code system. Here’s how to program it:

1. Start your GMC or put it in accessory mode.
2. Hold the HomeLink button you want to program (button 1, 2, or 3) until the indicator light begins blinking slowly (about 20-30 seconds).
3. Hold your garage remote 1-3 inches from the HomeLink buttons.
4. While the HomeLink light is blinking, press and hold both the HomeLink button and your garage remote button at the same time.

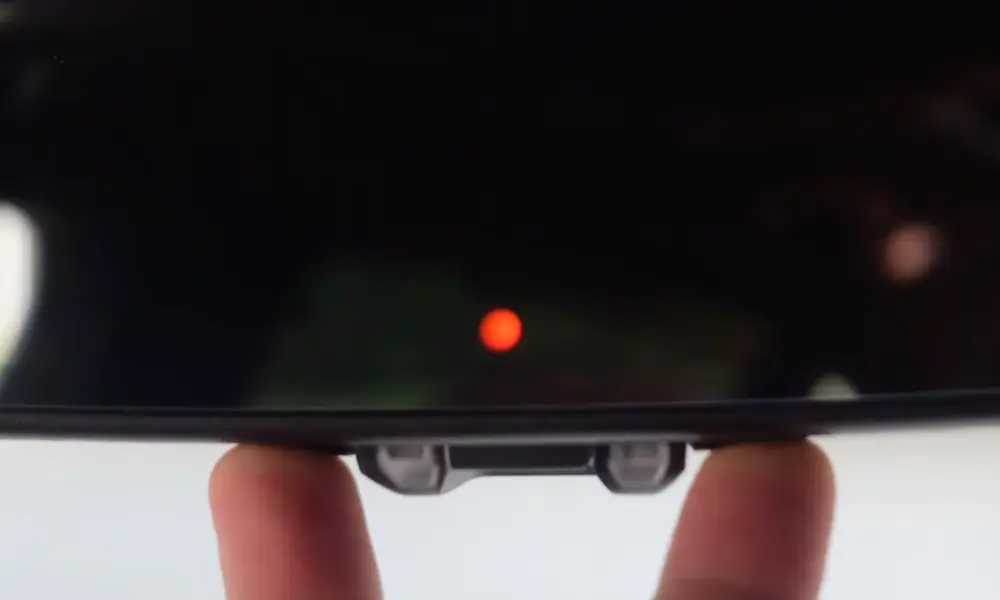

5. Keep holding until the HomeLink light changes from a slow to a rapid blink, then to a solid light.
6. Test by pressing the programmed HomeLink button – your garage door should open or close.

For best results, make sure you’re within 25 feet of your garage door when testing. If the door doesn’t respond, you may need to repeat the process or check if you have a rolling-code system instead.

Programming a Rolling-Code Opener

Most garage door openers made after 2010 use rolling-code technology for added security. The process requires a few extra steps:

1. Follow steps 1-5 from the standard programming instructions above.
2. When the HomeLink light starts blinking rapidly, locate the “Learn” or “Smart” button on your garage door opener motor unit. This is typically a colored button near the antenna wire.
3. Press the “Learn” button – you’ll usually have a 30-second window for the next step.
4. Return to your vehicle and press the programmed HomeLink button three times (press-release-press-release-press-release) within 15 seconds.
5. Your garage door should now activate, confirming successful programming.

If your garage door doesn’t respond, you may need to repeat the process or check your garage door opener’s specific requirements.

Universal Home Remote (UHR) Programming

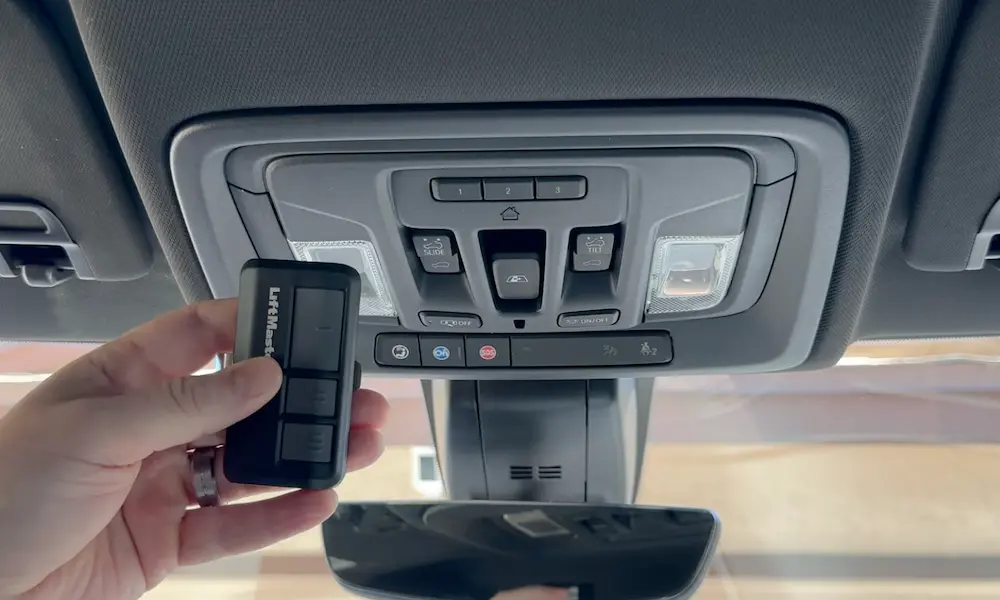

If your GMC has the Universal Home Remote system (typically three buttons labeled 1, 2, and 3 in the overhead console), follow these steps:

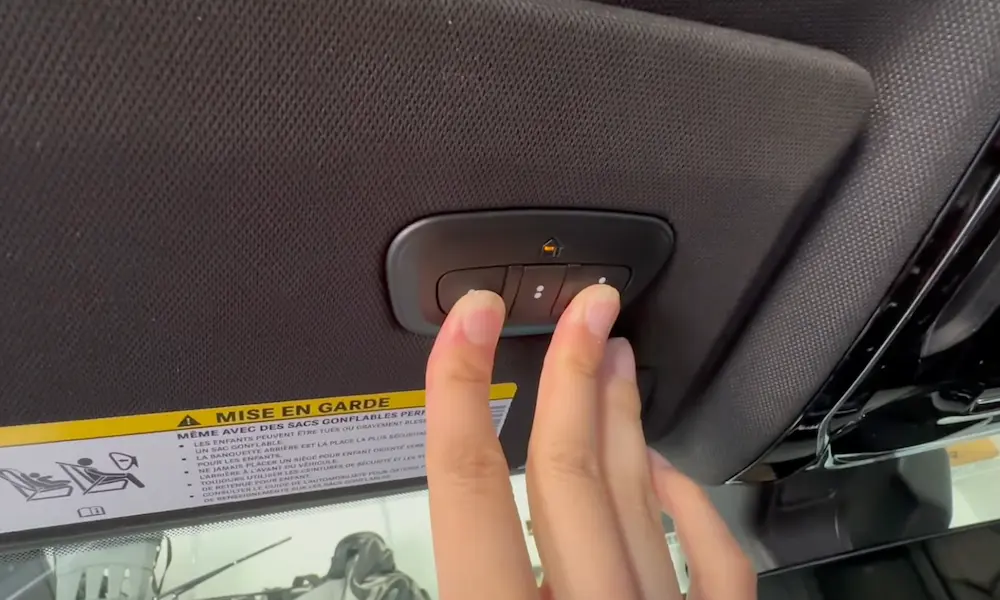

1. Press and hold buttons 1 and 3 simultaneously for about 20 seconds until the indicator light flashes.
2. Hold your original remote 1-3 inches from the UHR buttons.
3. Press and hold both the UHR button you want to program and the button on your remote until the light changes from slowly blinking to rapidly blinking.
4. If you have a rolling-code opener, find and press the “Learn” button on your garage door motor unit.
5. Return to your vehicle and press the programmed UHR button three times within 15 seconds.
6. Test the button to ensure your garage door responds.

For 2020-2024 models, you may need to use your vehicle’s touchscreen to complete the setup process. Check your owner’s manual for specific instructions.

Brand-Specific Programming Guidelines

Chamberlain, LiftMaster, and Craftsman Openers

Chamberlain Group openers (including LiftMaster and Craftsman) require specific actions based on the color of the “Learn” button:

Genie and Overhead Door Systems

For Genie Intellicode systems, you may need to:

1. Complete the standard rolling-code programming steps

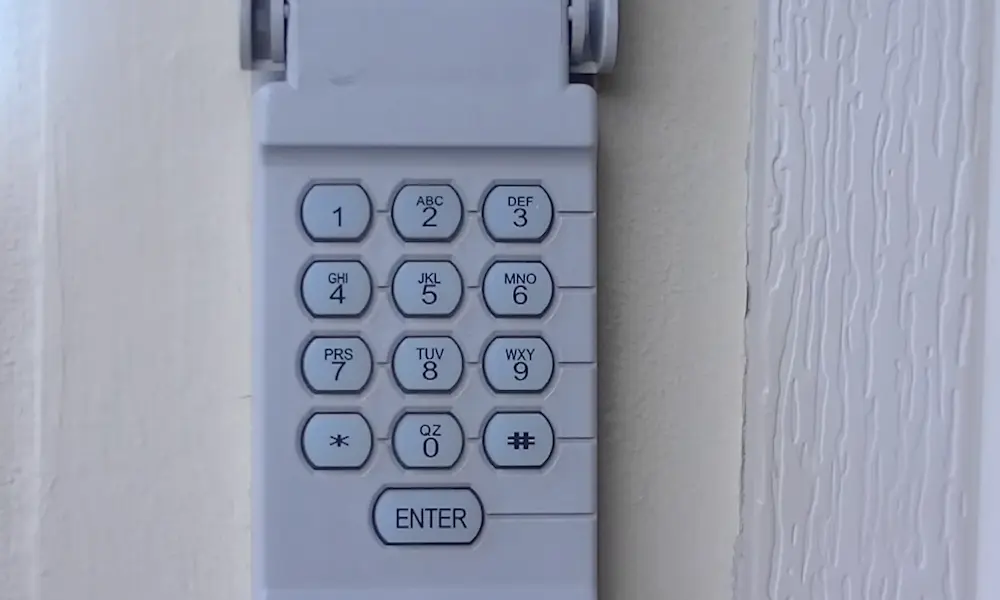

2. Enter a 4-digit PIN through your vehicle’s touchscreen (similar to the PIN used for wall-mounted keypads)
3. Test the system by pressing the programmed HomeLink button

Overhead Door models sometimes require a hard reset of the opener’s circuit board before they’ll accept new HomeLink signals. Check your garage door opener’s manual for specific instructions.

Troubleshooting Common Programming Issues

Signal Interference Problems

If your HomeLink system has limited range or inconsistent operation:

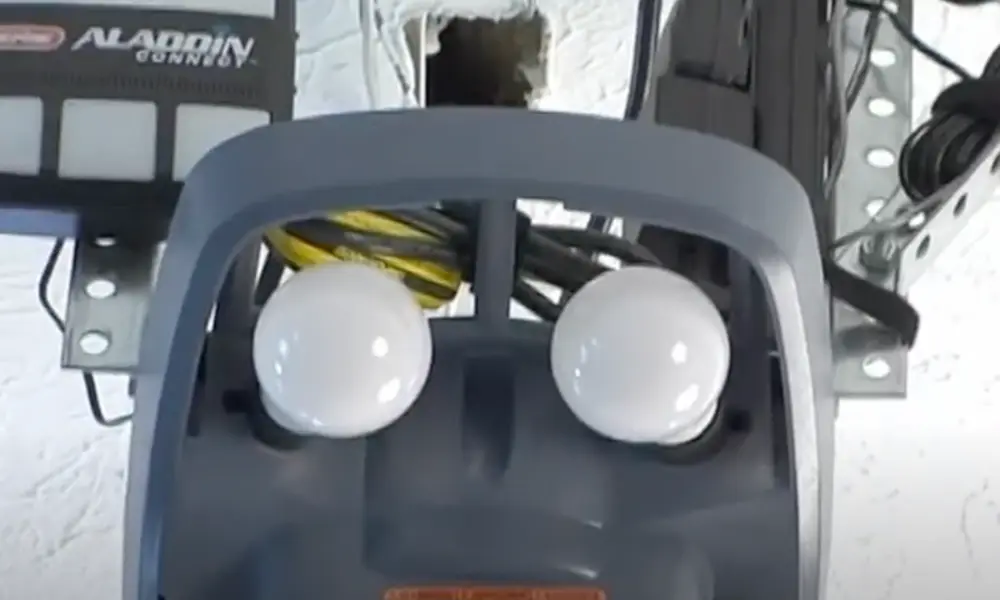

• Replace LED bulbs in your garage door opener with incandescent bulbs (LEDs can create interference)
• Make sure metal garage door tracks or foil insulation aren’t blocking the signal
• Try programming with the vehicle positioned directly in front of the garage door

Remote Battery and Vehicle Power Issues

If programming fails:

• Replace the batteries in your original remote control (weak batteries prevent proper signal transmission)
• Ensure your vehicle is in accessory mode or running, not just in the “ON” position with the engine off
• Try holding the remote closer to the HomeLink buttons (1-2 inches away)

Security System Conflicts

Home security systems can sometimes interfere with garage door signals:

• Temporarily disarm your home security system during programming
• Check if your security provider offers compatible garage door integration
• Contact your security system provider if problems persist

2024 GMC Models with HomeLink 5.0

The latest GMC models feature the streamlined HomeLink 5.0 system, which offers:

1. Simplified programming through simultaneous pressing of buttons 1 and 3
2. Real-time feedback via your digital dashboard
3. Automatic frequency scanning that eliminates manual remote alignment

This updated system reduces programming time from about 11 minutes to just 2.5 minutes, with a 98% first-attempt success rate.

Programming GMC Garage Door Opener Without a Remote

Lost your original remote? You might still be able to program your GMC’s garage door opener:

1. Check if your garage door opener has a “Learn” mode that can directly pair with HomeLink
2. Contact your garage door opener manufacturer about replacement remote options
3. Consider purchasing a universal garage door remote to use for programming

Remember that most garage door opener manufacturers offer customer support specifically for HomeLink integration issues.

Ensuring Your Garage Door Opener Is Compatible

Before spending time troubleshooting, verify your garage door opener is compatible with your GMC’s system:

1. Visit the HomeLink compatibility database
2. Enter your garage door opener’s make and model
3. Check if any adapters or additional steps are required

For openers made before 1995, you might need a compatibility bridge device available through HomeLink’s website.

Maintaining Your Programmed Garage Door Opener

Once you’ve successfully programmed your GMC’s garage door opener, keep it working smoothly:

• Test your system monthly to ensure consistent operation
• Reprogram if you notice decreased range or unreliable performance
• Update your vehicle’s software when recommended by GMC

Remember that in most 2020-2024 models, the garage door opener system remains inactive when the vehicle is off to prevent security vulnerabilities.

GMC Models with HomeLink/Universal Home Remote Systems

Almost all modern GMC vehicles support built-in garage door opener systems, including:

• Sierra (all trim levels)
• Yukon and Yukon XL
• Terrain (SLT and Denali trims)
• Acadia (SLT and Denali trims)
• Canyon (Denali trim)

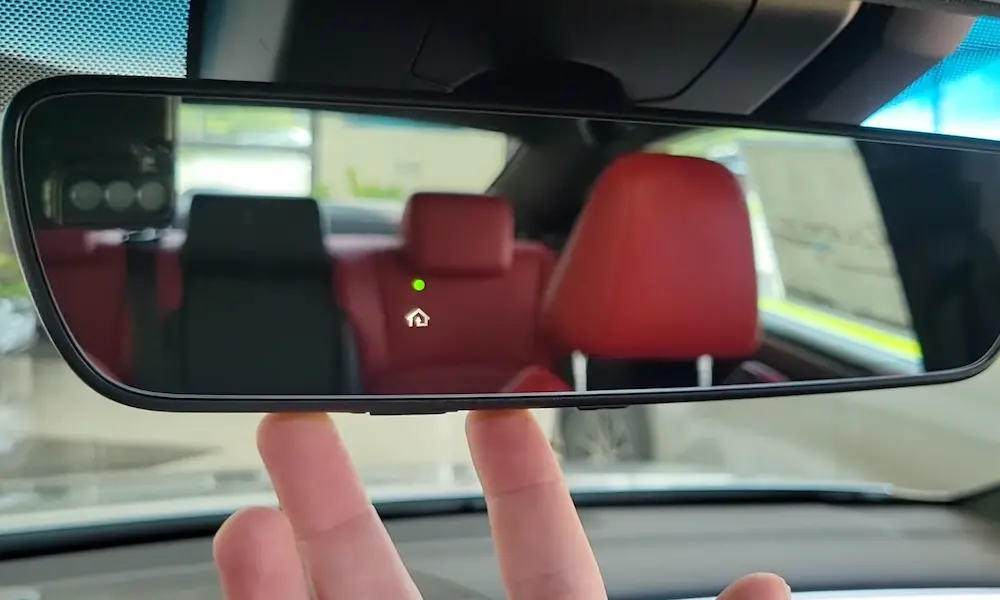

If you’re unsure whether your specific model has this feature, check your owner’s manual or look for the HomeLink buttons (typically three buttons with a house icon) near your rearview mirror or overhead console.

By following these steps, you should be able to successfully program your GMC garage door opener and enjoy the convenience of a clutter-free vehicle – no more searching for that separate remote!

Keep in mind that if you’ve tried all these steps and still can’t get your system working properly, it might be time to visit your local GMC dealer for assistance. They have specialized tools that can diagnose and resolve more complex programming issues with your vehicle’s HomeLink system.
