Ever fumbled with a separate garage door remote while driving your Mercedes? That built-in garage door opener in your rearview mirror isn’t just for show. It’s designed to make your life easier—if you know how to set it up properly.
What Is the Mercedes Garage Door Opener System?

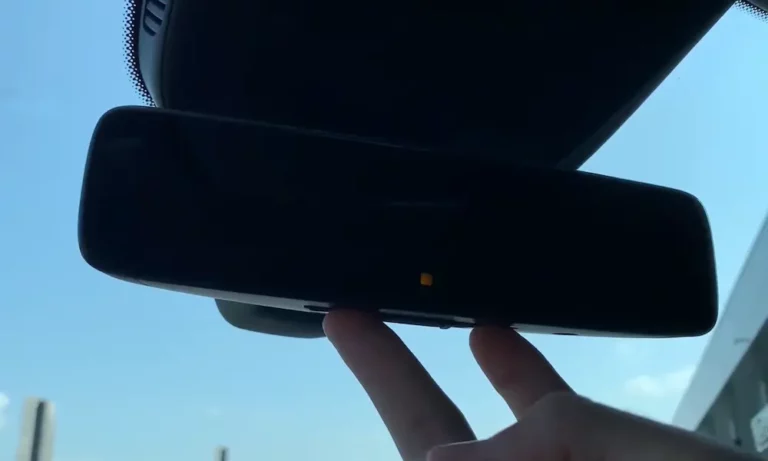

Your Mercedes comes equipped with HomeLink, a universal transceiver system built right into your rearview mirror. This smart little system works with about 90% of garage door openers in North America made after 1996. It lets you control up to three different doors or gates without carrying extra remotes.
The system uses radio frequency (RF) technology operating between 288-433 MHz, which means it “talks” the same language as most standard garage door openers. And yes, it works with both older fixed-code systems and newer rolling-code systems that change their codes each time for better security.
Before You Start Programming
Before diving into the programming process, gather what you’ll need:
- Your original garage door remote (with a fresh battery)
- Access to your garage door motor unit (for rolling-code systems)
- Your Mercedes parked within 20 feet of the garage door
- A few minutes of uninterrupted time
Make sure your car’s ignition is in the “ON” position (you don’t need to start the engine).
How to Clear Existing Codes
Starting fresh? Here’s how to wipe any previously stored codes:
- Turn your ignition to the “ON” position
- Press and hold buttons 1 and 3 on your HomeLink system for about 20 seconds
- Release when the LED changes from amber to solid green
This reset clears all three channels, so only do this if you’re setting up a completely new system.
Programming Fixed-Code Systems
Fixed-code systems are typically older garage door openers manufactured before 2000. They use a set code that doesn’t change. Here’s how to program them:
Step 1: Prepare Your Vehicle
- Turn the ignition to “ON”
- Choose which button (1, 2, or 3) you want to program
- Press and hold that button until the LED light turns amber (about 3 seconds)
- Release the button – the LED will start flashing at a steady rate
Step 2: Transfer the Code
- Hold your original remote 1-6 inches from the HomeLink buttons
- Press and hold the button on your original remote
- Keep holding until the LED changes from flashing amber to solid green
- This may take up to 25 seconds – be patient!
Step 3: Test It Out
Simply press the programmed button for about 1 second. Your garage door should respond within 20 seconds. If the LED flashes red or the door doesn’t move, you’ll need to repeat the process.
Programming Rolling-Code Systems
Modern garage door openers (most made after 2000) use rolling-code technology for enhanced security. They’re a bit trickier to program but offer better protection. Here’s how to do it:
Stage 1: Program Your Vehicle
- Follow the same initial steps as for fixed-code systems
- Hold your original remote’s button longer – until the LED flashes green (typically 15-25 seconds)
- Release the transmitter – your system is now ready for synchronization
Stage 2: Sync With Your Garage Door Opener
- Locate the “Learn” button on your garage door opener motor unit (usually yellow or red)
- Press and release this button – your opener is now in “learning mode” for about 30 seconds
- Quickly return to your vehicle (some opener LEDs display the remaining time)
Stage 3: Complete the Connection
- Press and hold your programmed HomeLink button for 2 seconds
- Release for 2 seconds
- Press and release again (repeat this cycle 3 times)
- On the final press, your door should activate, confirming successful programming
Troubleshooting Common Issues
LED Stays Amber
This usually indicates a signal problem. Try positioning your original remote at different angles, making sure the antenna is perpendicular to the windshield.
Door Opens But Won’t Close (or Vice Versa)
You may need to repeat the programming process. Sometimes the full signal pattern wasn’t properly captured.
Limited Range
If your opener only works when you’re very close to the garage:
- Replace the battery in your original remote before programming
- Check for interference from Wi-Fi routers or Bluetooth devices nearby
- Position your car closer during programming
Programming Works But System Stops Responding Later
For rolling-code systems, you might need to resynchronize. Go through the programming process again, focusing especially on Stage 3.
Programming Multiple Doors
Have more than one garage door? No problem:
- Program each door to a different HomeLink button (1, 2, or 3)
- Wait at least 30 seconds between programming sequences
- Label each button mentally (or with a tiny sticker if needed)
Remember that each button can only control one door or gate at a time.
Systems That Won’t Work With HomeLink
Despite its versatility, HomeLink can’t interface with every system. It won’t work with:
- Some proprietary systems like certain Chamberlain MyQ or LiftMaster models that require cloud integration
- Simple mechanical latches with physical pull cords
- Commercial systems using 900MHz frequency hopping
If you have one of these systems, you might need to stick with your original remote or look into compatible adapters.
Mercedes Models With Different Programming Methods
While the basic process is similar across Mercedes models, there are some variations:
| Model Series | Year Range | Notable Differences |
|---|---|---|
| C-Class (W205) | 2015-2021 | Standard 3-button system in rearview mirror |
| E-Class (W213) | 2017+ | Optional MBUX integration with touchscreen access |
| S-Class (W223) | 2021+ | Voice control option (“Hey Mercedes, open garage door”) |
| EQE/EQS | 2022+ | Digital assistant integration with geofencing capabilities |
For 2024+ models, some vehicles support Bluetooth Low Energy (BLE) pairing as an alternative to traditional RF programming, though legacy openers still require the standard method.
Using Your Programmed HomeLink System
Once properly programmed, using your Mercedes garage door opener is simple:
- Approach your garage
- Press the programmed button once
- Hold for approximately 1 second
- Release and watch your garage door respond
Some newer Mercedes models even allow you to set up geofencing through Mercedes me Connect, automatically opening your garage when you approach home.
Maintaining Your HomeLink System
Your HomeLink system should work reliably for years without maintenance. However, if you notice reduced range or inconsistent operation:
- Check if your garage door opener itself needs maintenance
- Ensure nothing is blocking the signal path between your car and garage
- Consider reprogramming if you’ve changed batteries in your original remote
For persistent issues, Mercedes dealerships can run diagnostics using the STAR Diagnosis system to analyze signal strength and connectivity.
When You Replace Your Garage Door Opener
If you install a new garage door opener system:
- Clear all existing codes from your Mercedes HomeLink system
- Follow the programming steps for your new opener type (fixed or rolling-code)
- Test thoroughly before relying on it exclusively
Remember to keep your new opener’s original remote in a safe place as a backup and for future programming needs.
By following this guide, you’ll be able to program your Mercedes garage door opener system for seamless operation. No more fumbling for remotes or opening doors manually—just the convenience your luxury vehicle was designed to provide.
