Got a Toyota or Lexus with the 3.5L V6? Then the 2GR-FE oil capacity question has probably crossed your mind. Get it wrong and you’re looking at engine wear, VVT problems, or worse. This guide covers exactly how much oil your engine needs, which grade to use, and how to change it without making a mess.

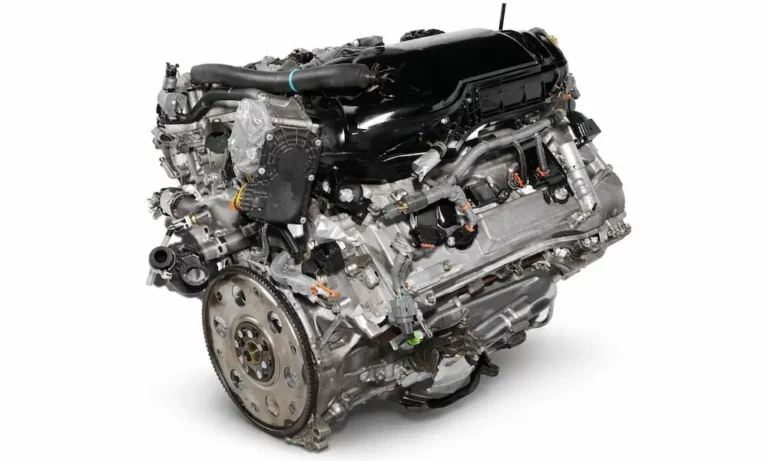

What Is the 2GR-FE Oil Capacity?
The standard 2GR-FE oil capacity is 6.4 US quarts when you replace the filter at the same time — which you always should. That’s the number you need for a routine oil change on nearly every Toyota and Lexus vehicle using this engine.
But there’s more to it than one number. The capacity shifts slightly depending on what you’re doing.
| Service Type | Capacity (US Quarts) | Capacity (Liters) |
|---|---|---|
| Drain and refill with new filter | 6.4 | 6.1 |
| Drain and refill without filter change | 6.1 | 5.7 |
| Total system dry fill | 6.9 | 6.5 |
The dry fill figure — 6.9 quarts — only matters during a full engine rebuild. That extra half-quart stays trapped inside the oil pump, VVT actuators, and hydraulic lifters even after you drain the pan. You’ll never need that number for a regular service.
If you skip the filter replacement, only add 6.1 quarts. Pouring 6.4 quarts without changing the filter causes a slight overfill, which can lead to oil aeration when the crankshaft slaps the oil surface.
2GR-FE Oil Capacity by Vehicle Model
Most 2GR-FE platforms share the same 6.4-quart spec, but a few exceptions exist. Always check your owner’s manual or oil filler cap to confirm.
| Vehicle | Engine Code | Oil Capacity (Quarts) | Notes |
|---|---|---|---|
| Toyota Camry / Avalon | 2GR-FE | 6.4 | Post-2012 uses 0W-20 |
| Toyota RAV4 | 2GR-FE | 6.4 | Earlier models used 5W-30 |
| Toyota Highlander | 2GR-FE | 6.4 | Towing package adds oil cooler |
| Toyota Sienna | 2GR-FE | 6.4 – 6.45 | Slight variation by model year |
| Lexus RX 350 / ES 350 | 2GR-FE | 6.4 | Full synthetic 0W-20 recommended |
| Lexus GS 350 / IS 350 AWD | 2GR-FE | 6.7 – 6.8 | Larger oil pan clears front axle |
The AWD bump to 6.7–6.8 quarts happens because the redesigned oil pan needs extra clearance around the front differential. It’s not a big difference, but it matters.
Watch Out for the 2GR-FKS Mix-Up
If you own a 2017 or newer Highlander or Sienna, double-check which engine you actually have. Toyota swapped to the updated 2GR-FKS engine in many of these models, which only takes 5.7 to 5.8 quarts. Pouring 6.4 quarts into one of those is a real overfill — not just marginal.
Check your VIN, your door sticker, or your oil filler cap before you pour anything.
Which Oil Grade Does the 2GR-FE Take?
The right answer depends on your vehicle’s model year. The grade changed significantly around 2010–2012 as Toyota chased better fuel economy numbers under federal CAFE standards.
| Model Year Range | Recommended Grade | Oil Type |
|---|---|---|
| Early models (pre-2010) | 5W-30 | Conventional or synthetic |
| Transition models (2010–2011) | 5W-30 or 0W-20 | Varies by specific model |
| Late models (2012–present) | 0W-20 | Full synthetic only |
For modern 2GR-FE engines, 0W-20 full synthetic is the correct choice. This thinner grade cuts internal friction, helps the engine fire up cleanly in cold weather, and keeps the VVT system running smoothly. The VVT system relies entirely on oil pressure to rotate the camshafts — thin, clean oil flows faster and responds more precisely.
Oil Certifications That Actually Matter
Don’t just grab any bottle of 0W-20. Look for these certifications on the label:
- API SP or SN Plus — protects against low-speed pre-ignition and timing chain wear
- ILSAC GF-6A or GF-5 — confirms the right balance of detergents and anti-wear additives
Using a non-certified oil might save a few dollars upfront, but the VVT actuators and hydraulic lash adjusters are sensitive to additive quality. Sludge buildup in those components gets expensive fast.
How to Change the Oil on a 2GR-FE
The 2GR-FE uses a cartridge-style oil filter instead of the spin-on canister most people are used to. It’s not harder — just different. You need the right tool and the right sequence.
What You’ll Need
- 6.4 quarts of 0W-20 full synthetic oil
- Replacement cartridge filter element
- Two new rubber O-rings (main cap and drain plug)
- 64.5mm, 14-flute oil filter wrench — this is the specific tool for this housing
- 14mm socket for the drain plug
- Torque wrench
- New crush washer for the drain plug
Step-by-Step Filter Change
- Drain the small plug first. The cartridge housing has a small metal drain plug at the base. Remove it with a 3/8-inch square drive and let the housing empty before you touch the main cap.
- Insert the drain pipe. The replacement filter kit includes a plastic pipe. Slide it in to channel the remaining oil out cleanly — skipping this step creates a mess.
- Remove the main housing cap. Use your 64.5mm filter wrench. Turn slowly and let it drain completely.
- Swap the filter element and O-rings. Replace both rubber O-rings — the one on the main cap and the one on the small drain plug. Coat them lightly with fresh oil so they seat properly without tearing.
- Reinstall the housing cap and torque it to 18–20 foot-pounds. Don’t overtighten. Plastic housings crack under thermal stress, and you’ll fight a stuck cap at your next service.
- Remove the drain pan plug. Fit a new crush washer and torque to 30 foot-pounds.
- Pour in 6.4 quarts, start the engine, let it run a few minutes to fill the filter and VVT circuits, then shut it off and check the dipstick.
Reading the Dipstick Accurately
This part trips people up. The 2GR-FE dipstick tube holds a thin oil film that smears the reading. Here’s what works:
- Park on a level surface
- Wait 5–10 minutes after shutting the engine off
- Pull the dipstick, wipe it clean, reinsert it fully, then pull it again
- Read that second pull — not the first
If the level reads above the “Full” mark right after a refill, it’s usually oil trapped in the tube, not an actual overfill.
Oil Change Intervals for the 2GR-FE
With full synthetic 0W-20, Toyota’s standard interval is 10,000 miles or 12 months, whichever comes first. That extended interval reflects how stable modern synthetic oil is — and how tight the 2GR-FE’s manufacturing tolerances are.
But “standard conditions” doesn’t describe how most people actually drive.
Severe Service Conditions
Drop to a 5,000-mile or 6-month interval if any of these apply to you:
- You tow a trailer or haul heavy loads regularly — heat destroys oil faster under load
- You drive on unpaved or dusty roads
- Most of your trips are under 5 miles, especially in cold weather — short trips trap moisture in the oil
- You sit in heavy traffic frequently or do a lot of city driving
If you’re still running 5W-30 conventional oil, stick to 5,000 miles regardless of conditions. Conventional oil breaks down faster and accumulates acidic byproducts more quickly than synthetic.
Even on the 10,000-mile cycle, Toyota recommends a service visit every 5,000 miles for tire rotation and fluid checks. Use that visit to pull the dipstick. High-mileage 2GR-FE engines can consume oil between changes — if the level drops noticeably, a failing PCV valve or worn valve stem seals are the likely culprits.
The VVTi Oil Line Problem You Need to Know About
If you own a 2GR-FE built between 2006 and 2010, there’s one reliability issue that demands attention. The external oil line feeding the passenger-side VVT system used a rubber hose section that failed under heat and pressure.
When it fails, it doesn’t leak slowly. It ruptures and dumps nearly all 6.4 quarts of oil in seconds. If you don’t shut down instantly, the engine seizes.
Toyota issued a technical service bulletin and replaced the hybrid line with an all-metal version. Check whether your vehicle still has the original rubber-section line or the updated all-metal replacement. Later models came with the metal line from the factory, so this only affects the earlier production window.
Oil Cooling Variations
The 2GR-FE uses two different cooling setups depending on the trim level:
Liquid-to-liquid cooler — Standard on most models. A small heat exchanger behind the filter housing uses engine coolant to keep oil temperature stable. This also helps oil warm up faster on cold starts.
External liquid-to-air cooler — Part of the factory towing package on the Highlander and Sienna. It adds a dedicated radiator in the airflow path. The good news: this external cooler doesn’t drain during a normal oil change, so you still add the standard 6.4 quarts.
If you tow frequently in hot climates — desert Southwest, summer road trips — run a 5,000-mile interval regardless of oil type. The extra heat accelerates oxidation faster than the mileage counter suggests.
Key Takeaways
The 2GR-FE oil capacity comes down to a few numbers worth memorizing:
- 6.4 quarts for a standard drain-and-refill with filter change
- 6.1 quarts if you’re skipping the filter (don’t skip the filter)
- 0W-20 full synthetic for 2012 and newer; 5W-30 for earlier models
- 10,000-mile intervals for highway drivers using full synthetic
- 5,000-mile intervals for towing, short trips, or dusty conditions
Get those right, use the correct filter wrench, torque everything properly, and this engine will run reliably well past 200,000 miles.
