Your Corolla’s battery light just flickered on, or maybe the headlights dimmed at a red light. Either way, you’re probably staring down a Toyota Corolla alternator replacement. This guide walks you through every generation — from the tough 1ZZ-FE engines to the smart-charging 2024 models — so you can diagnose, replace, and verify the repair correctly.

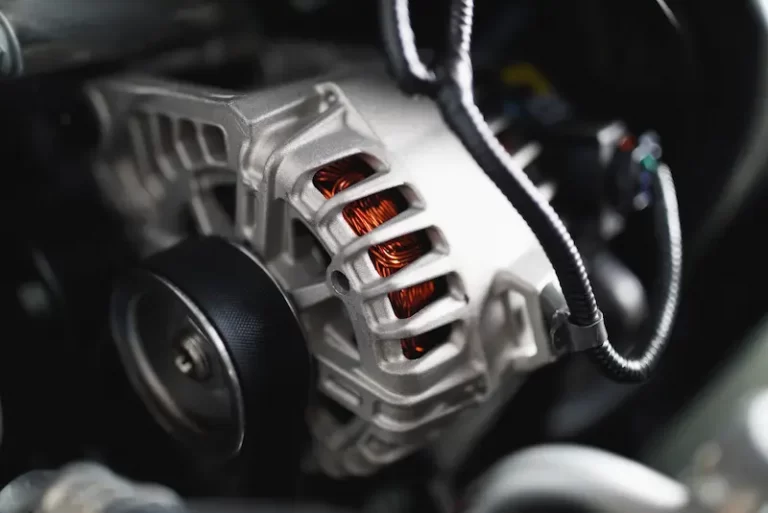

How Do You Know Your Alternator Is Actually Failing?
Don’t guess. A dead battery and a failing alternator share symptoms, so testing before replacing saves you money and frustration.
Warning Signs to Watch For
Your Corolla will usually tell you something’s wrong before it leaves you stranded. Here’s what to look for:
- Battery warning light on the dashboard — this is the clearest signal the charging system’s output has dropped below battery voltage
- Dimming or flickering headlights, especially at idle or in sync with engine RPM
- Slow power windows — electrical accessories lose steam when the alternator can’t keep up
- A low growl or high-pitched whine from the engine bay that gets louder as RPMs rise (worn alternator bearing)
- A burning rubber smell — failed internal diodes can overheat and stress the drive belt
- “Check Charging System” message on 2014+ models with color displays, often paired with a warning triangle
Modern Corollas with color instrument clusters will display a specific charging system warning that removes most of the guesswork.
Test It With a Voltmeter Before You Buy Anything
Grab a multimeter. Here’s the three-stage test that confirms alternator failure:
Stage 1 — Resting voltage (engine off): A healthy battery reads 12.4–12.7 volts. Below that? Charge or replace the battery first. A weak battery can make a good alternator look bad.
Stage 2 — Idle output test (engine running): Voltage at the battery terminals should climb to 13.8–14.5 volts. If it stays flat or drops, the alternator’s regulator or stator is likely gone.
Stage 3 — Load stress test (engine at ~2,000 RPM): Turn on the headlights, A/C blower on high, and rear defroster. A healthy alternator holds above 13.5 volts. If it dives and doesn’t recover, replacement time.
Generations at a Glance: What Changed and Why It Matters
Not all Corolla alternator replacements are the same job. The tensioning system, connector type, and electronics all changed across generations.
| Generation | Model Years | Engine | Tensioner Type | Connector Style |
|---|---|---|---|---|
| 9th Gen | 2003–2008 | 1ZZ-FE | Automatic spring-loaded | Multi-pin rectangular plug |
| 10th Gen | 2009–2013 | 2ZR-FE | Manual slide bracket | Three- or four-pin round |
| 11th Gen | 2014–2019 | 2ZR-FAE | Manual or automatic | Valeo-style high-amperage |
| 12th Gen | 2020–2024 | M20A-FKS | Automatic / electronic | Smart-charging LIN-bus integrated |
Understanding which tensioner system your car uses changes how you approach the job. Get this wrong and you’ll either strip a bolt or walk away with a loose belt.
Tools You’ll Actually Need
Don’t start wrenching without these on the workbench:
| Tool | Size | What It Does |
|---|---|---|
| Socket wrench | 10mm | Battery terminals, wiring brackets, B-plus nut |
| Socket wrench | 12mm | Upper adjustment and mounting bolts |
| Socket wrench | 14mm | Main pivot bolts and automatic tensioners |
| Breaker bar | 19mm | Compressing spring tensioners on 1ZZ engines |
| Pry bar | Small–medium | Freeing a stuck alternator from tight mounting ears |
| Wire brush | Steel or brass | Cleaning terminals before reconnecting |
| Torque wrench | Ft-lbs / in-lbs | Hitting factory specs on every fastener |
Before you touch anything, disconnect the negative battery cable. The alternator’s output stud connects directly to the battery positive post. Touch a metal tool between that stud and the engine block and you’ll create a direct short — potentially an explosive battery failure or a fried ECU.
2003–2008 Corolla Alternator Replacement (9th Gen, 1ZZ-FE)
The 9th-generation Corolla alternator replacement is one of the more forgiving jobs in this lineup. The 1ZZ-FE uses an automatic, spring-loaded tensioner that simplifies belt removal — though you’ll need some leverage to overcome the spring.
Disconnect, Then Remove the Belt
Start at the battery. Loosen the negative terminal with a 10mm wrench and tuck the cable away from the post. At the alternator, pull the rubber boot off the main charging stud and remove the 10mm nut holding the heavy-gauge wire. Check that ring terminal for heat damage or corrosion while you’re there.
Press the center tab on the secondary control harness plug and pull it straight out.
Now the belt. Find the automatic tensioner — it has a large hexagonal protrusion that takes a 19mm socket. Place a long breaker bar on it and rotate clockwise slowly to compress the spring. Slip the belt off the alternator pulley. Release the tensioner slowly — a fast release damages the spring damper inside.
Pull the Old Unit and Check the New One
The alternator uses a 14mm pivot bolt at the base and a 12mm bolt at the top. Once those are out, the unit might stay wedged in its mounting ears. Rock it gently or use a pry bar carefully to free it.
Before installing the new unit, compare the pulleys. The 2003–2008 1ZZ-FE uses a six-groove pulley. Count them. Also verify the electrical connector’s pin configuration matches exactly. A wrong part at this stage causes belt misalignment or electrical faults.
2009–2013 Corolla Alternator Replacement (10th Gen, 2ZR-FE)
The 10th-gen Corolla swapped the automatic tensioner for a manual slide-bracket system. This means the alternator’s physical position controls belt tension. It’s more involved, but there’s no tensioner spring to fight.
Loosening the Manual Bracket
After disconnecting the battery, loosen — don’t remove — the 14mm pivot bolt at the alternator’s base. This is the rotation axis. Then loosen the 12mm locking bolt on the top adjustment bracket.
Turn the adjustment bolt counter-clockwise. The alternator slides inward toward the block, creating slack in the belt. Slip the belt off the pulley. Some 2009–2013 models have a plastic harness clip attached to the alternator body — use a small flathead screwdriver to release it before disconnecting the harness.
Setting Belt Tension Correctly
After bolting the new alternator loosely into position, route the belt according to the factory serpentine belt routing diagram. Make sure the grooved side seats perfectly in every pulley.
Turn the 12mm adjustment bolt clockwise to push the alternator outward and tension the belt. Without a tension gauge, use the thumb test: press the belt firmly at its longest span — you want about half an inch of deflection. Too tight and you’ll destroy the alternator bearing and water pump. Too loose and the belt will squeal and reduce charging efficiency.
Torque the 12mm locking bolt to 32 ft-lbs, then the 14mm pivot bolt to the same spec.
2014–2019 Corolla Alternator Replacement (11th Gen, 2ZR-FAE)
The 11th-generation alternator swap is physically one of the most accessible in the lineup. These models often use Valeo-style alternators rated around 115 amps and may feature a clutch-style pulley to reduce vibration during deceleration.
Watch the Surrounding Components
The alternator sits in an open area, but plastic sensors and vacuum lines crowd the upper mounting zone. Be careful. Some models in this generation also have a 10mm bolt securing a metal wiring bracket to the top of the alternator — remove that before the main mounting bolts.
The tensioner type varies by build date. If it’s an automatic tensioner, place a 14mm wrench on the tensioner pulley bolt and rotate it toward the front of the car to release the belt. If it’s the manual slide-bracket system, follow the 10th-gen procedure above.
Torque Specs That Matter Here
Don’t over-tighten the B-plus terminal nut. The correct torque is 70–90 inch-pounds. Crank it too hard and you’ll crack the ceramic insulator block inside the alternator — that’s a fire hazard. Mount the alternator body bolts to 18 ft-lbs. Push the electrical plug in until you hear a distinct click confirming the locking tab is engaged.
2020–2024 Corolla Alternator Replacement (12th Gen, M20A-FKS)
The newest Corolla generation uses a smart-charging system that communicates over a LIN-bus interface. The physical swap is actually the easiest of all four generations — but there’s an electronic step most people skip.
One Critical Difference: Hybrid vs. Gas
First, confirm what you have. The Corolla Hybrid doesn’t use a belt-driven alternator at all. It uses a motor-generator integrated into the transaxle to charge the 12-volt battery through a DC-to-DC converter. If your hybrid has charging issues, the problem is in the converter or hybrid control system — not a mechanical alternator.
For gasoline 2020–2024 models, the alternator sits at the very top of the engine bay. Rotate the automatic tensioner clockwise using a 14mm hex head to release the belt immediately. Two 12mm bolts hold the unit in place. It’s straightforward.
Don’t Skip the BMS Reset
On 2020+ gasoline models, the Battery Management System monitors battery health and tells the alternator how hard to work. After replacing the alternator, the BMS is still operating on data from the old, failing unit.
Resetting the BMS requires an OBD2 scanner. Connect it under the driver’s dashboard, navigate to the battery service menu, and select “BMS Reset” or “Battery Registration.” This clears the old charging data and starts a new learning cycle. Skip this step and you may see a lingering “Check Charging System” warning or lose auto-stop-start functionality.
The Serpentine Belt: Replace It While You’re In There
You already removed the belt. Just replace it. Automotive experts recommend replacing the serpentine belt every 90,000 miles regardless of visual condition — and since the labor’s already done, there’s no reason to reinstall the old one.
How to Spot a Belt That’s Past Its Life
- Pitting or chunking — missing pieces from the rubber ribs
- More than three cracks per inch across the ribs — high snap risk
- Glazed, shiny appearance on the rib sides — the belt’s been slipping and heat-damaged
Belt Specs by Generation
| Generation | Approx. Belt Length | OEM Manufacturer | Grooves |
|---|---|---|---|
| 2003–2008 (1ZZ-FE) | 74 inches | Bando / Mitsuboshi | 6 |
| 2009–2013 (2ZR-FE) | 48 inches | Bando / Mitsuboshi | 6 |
| 2014–2019 (2ZR-FAE) | 48 inches | Bando / Mitsuboshi | 6 |
| 2020–2024 (M20A-FKS) | 46 inches | Mitsuboshi | 6 |
Toyota OEM belts come from Bando or Mitsuboshi. In the aftermarket, stick with those brands or ACDelco for reliable, quiet operation that matches OEM quality.
Post-Installation Checks You Can’t Skip
Charge the Battery Before You Start the Engine
Don’t use the new alternator to rescue a dead battery. An alternator maintains charge — it’s not a bulk charger. Forcing it to pour maximum current into a dead battery creates internal heat that melts solder connections or blows the diodes within minutes. Charge the battery fully with an external charger first. If the battery won’t accept a charge, replace it alongside the alternator.
Final Voltage Verification
Start the engine and put your voltmeter back on the battery terminals:
- At idle, accessories off: 13.8–14.4 volts ✓
- At 2,000 RPM: Should not exceed 15 volts — a spike above that means a faulty regulator in the new unit
- Voltage drop test: With the engine running under load, measure between the alternator’s output stud and the battery positive post — anything above 0.2 volts indicates corrosion and resistance in the main charging cable
Fastener Torque Reference
| Fastener | Size | Torque |
|---|---|---|
| Negative battery terminal nut | 10mm | 48–60 in-lbs |
| Alternator B-plus output nut | 10mm | 70–90 in-lbs |
| Alternator main pivot bolt | 14mm | 38–40 ft-lbs |
| Upper locking / mounting bolt | 12mm | 18–20 ft-lbs |
| Wiring bracket stay bolt | 10mm | 7–9 ft-lbs |
| Automatic tensioner pivot bolt | 14mm | 25–30 ft-lbs |
What Kills Alternators Early in the Corolla
Regional conditions matter more than most people realize.
In the Rust Belt, road salt accelerates corrosion on the aluminum alternator housing and copper terminals. That corrosion creates resistance, resistance creates heat, and heat kills electrical components.
In the Southwest, heavy traffic with peak A/C demand at low RPMs stresses the alternator’s cooling capacity. Genuine Toyota alternators use pressure-fit, high-capacity diodes to handle this. Budget aftermarket units often skip this feature and fail within the first summer.
Oil leaks are another silent killer. The 1.8-liter engines in older Corollas are prone to valve cover gasket leaks. Because the alternator sits directly below the front corner of the valve cover, oil seeps into the cooling vents and coats the internal brushes. If your old alternator has oil on it, fix that leak before the new unit goes in — or you’ll be doing this job again in six months.
